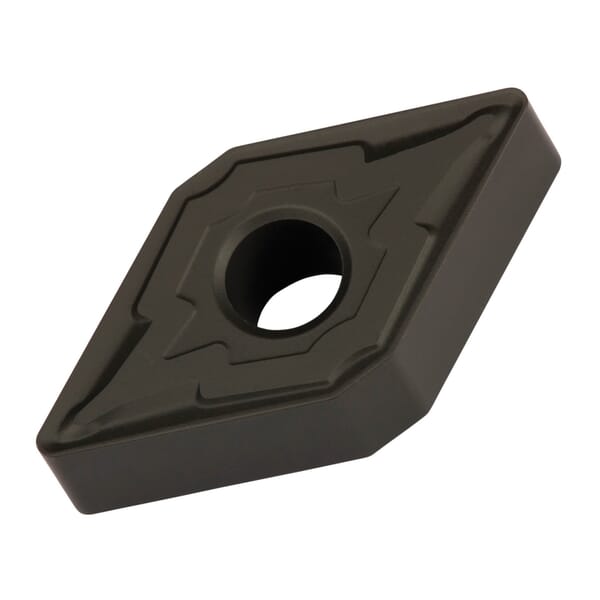

Name: Pramet 6754900 Turning Insert, ANSI Code: DNMG 431-M T9335, DNMG Insert, Material Grade: M, P, S, 431 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335
Brand: Dormer Pramet
SKU: DORMER_2001692
Availability: OutOfStock

Dormer Pramet

Pramet 6754900 Turning Insert, ANSI Code: DNMG 431-M T9335, DNMG Insert, Material Grade: M, P, S, 431 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6754900 Turning Insert, ANSI Code: DNMG 431-M T9335, DNMG Insert, Material Grade: M, P, S, 431 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

ManufacturerPramet

Part #816054900

MFG #6754900

UPC #3603602902665

Pramet Turning Insert, DNMG Insert, 431 Insert, Diamond, 0.118 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.61 in Length, 15 Seat, Negative Rake, M Chipbreaker, 1/64 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T9335, ANSI Code: DNMG 431-M T9335, ISO Code: DNMG 150404E-M T9335, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 431-M T9335

Chipbreaker: M

Corner Radius: 1/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 0.203 in

Included Angle: 55 deg

Inscribed Circle: 1/2 in

Insert Size: 431

Insert Style: DNMG

ISO Code: DNMG 150404E-M T9335

Length: 0.61 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 0.118 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 15

Shape: Diamond

Thickness: 3/16 in

T9335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
MT-CVD coating of medium thickness
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

Pramet Turning Insert, DNMG Insert, 431 Insert, Diamond, 0.118 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.61 in Length, 15 Seat, Negative Rake, M Chipbreaker, 1/64 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T9335, ANSI Code: DNMG 431-M T9335, ISO Code: DNMG 150404E-M T9335, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys
