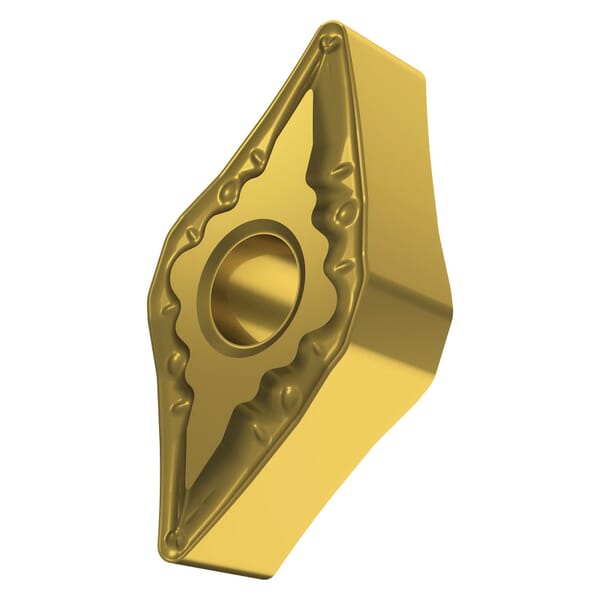

Pramet 6754208 Turning Insert, ANSI Code: DNMG 332-FM T8330, DNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Diamond Shape, 11 Seat, Negative Rake, For Use On Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

ManufacturerPramet

Part #816054208

MFG #6754208

UPC #3603602895745

Pramet Turning Insert, DNMG Insert, 332 Insert, Diamond, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 3/16 in Thickness, 0.457 in Length, 11 Seat, Negative Rake, FM Chipbreaker, 1/32 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: DNMG 332-FM T8330, ISO Code: DNMG 110408E-FM T8330, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 332-FM T8330

Chipbreaker: FM

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: PVD Coated

For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 0.15 in

Included Angle: 55 deg

Inscribed Circle: 3/8 in

Insert Size: 332

Insert Style: DNMG

ISO Code: DNMG 110408E-FM T8330

Length: 0.457 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 0.118 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 11

Shape: Diamond

Thickness: 3/16 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, DNMG Insert, 332 Insert, Diamond, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 3/16 in Thickness, 0.457 in Length, 11 Seat, Negative Rake, FM Chipbreaker, 1/32 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: DNMG 332-FM T8330, ISO Code: DNMG 110408E-FM T8330, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
