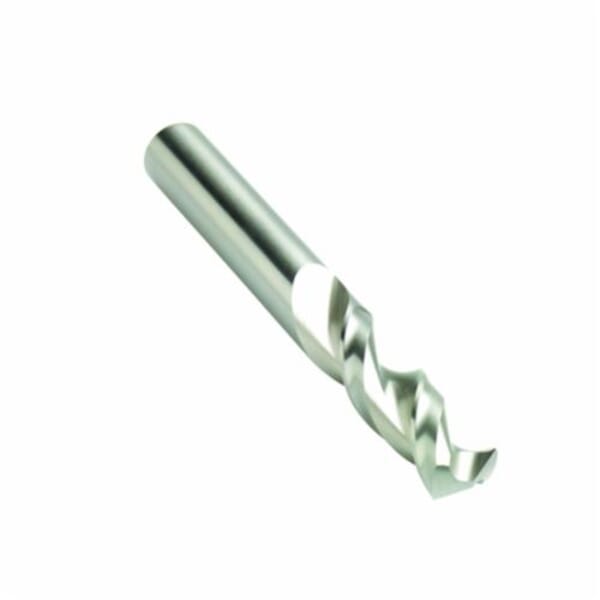

Dormer 5972335 A920 Heavy Duty Premium Screw Machine Drill, 5.8 mm Drill - Metric, 0.2283 in Drill - Decimal Inch, HSS-E, Bright

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5972335 A920 Heavy Duty Premium Screw Machine Drill, 5.8 mm Drill - Metric, 0.2283 in Drill - Decimal Inch, HSS-E, Bright

ManufacturerDormer

Part #816051238

MFG #0051238

UPC #7320760051238

Dormer Screw Machine Drill, Heavy Duty Premium, Series: A920, Metric/Imperial, 5.8 mm Drill - Metric, 0.2283 in Drill - Decimal Inch, 66 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Parabolic Flute, 28 mm Flute Length, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Nickel Alloyed, Copper, Bronze, Brass, High Strength Bronze, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics

$11.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.2283 in

Drill Size - Metric: 5.8 mm

Finish: Bright

Flute Length: 28 mm

Flute Type: Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 130 deg

Point Type: PFX

Series: A920

Shank Type: Straight

Type: Heavy Duty Premium

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

ANSI/DIN Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

For advanced chip removal application

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.2283 in

Drill Size - Metric: 5.8 mm

Finish: Bright

Flute Length: 28 mm

Flute Type: Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 130 deg

Point Type: PFX

Series: A920

Shank Type: Straight

Type: Heavy Duty Premium

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

ANSI/DIN Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

For advanced chip removal application

Specification Sheet

Catalog
