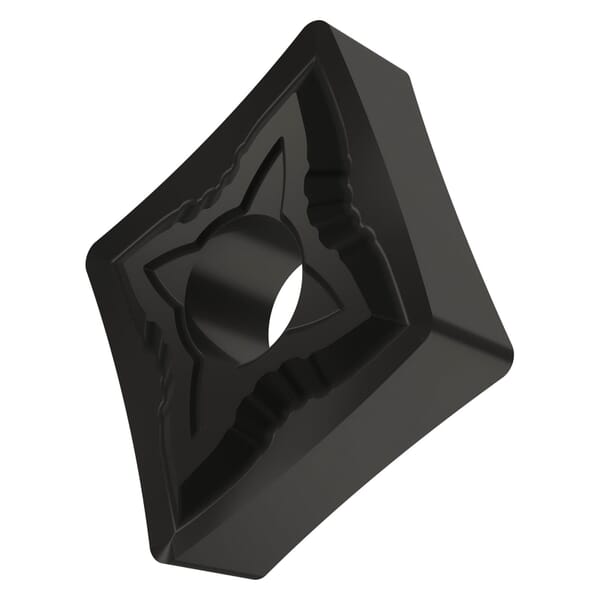

Pramet 7035048 Turning Insert, ANSI Code: CNMG 431-SF:T9315, CNMG Insert, Material Grade: H, K, P, 431 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816035048

MFG #7035048

UPC #3603603109193

Pramet Turning Insert, CNMG Insert, 431 Insert, Diamond, 2.7 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CNMG 431-SF:T9315, ISO Code: CNMG 120404E-SF:T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$10.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 431-SF:T9315

Chipbreaker: SF

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: CNMG

ISO Code: CNMG 120404E-SF:T9315

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 2.7 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, CNMG Insert, 431 Insert, Diamond, 2.7 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CNMG 431-SF:T9315, ISO Code: CNMG 120404E-SF:T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel
