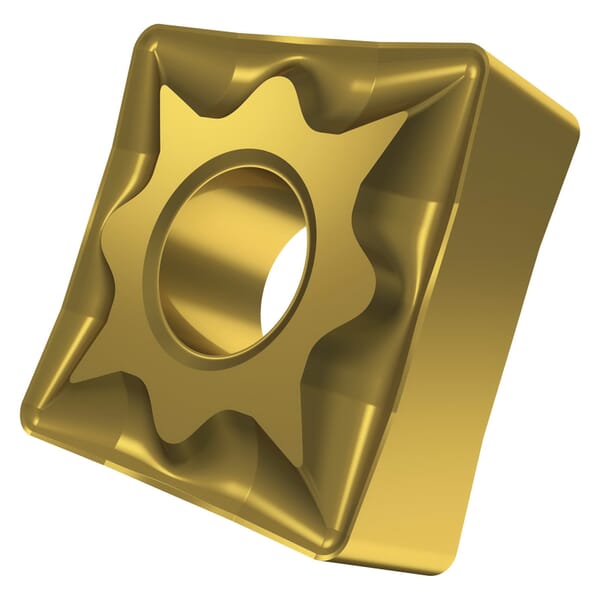

Name: Pramet 6834701 Turning Insert, ANSI Code: SNMG 432-NF:T8330, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Carbide, Manufacturers Grade: T8330
Brand: Dormer Pramet
SKU: DORMER_2003543
Availability: OutOfStock

Dormer Pramet

Pramet 6834701 Turning Insert, ANSI Code: SNMG 432-NF:T8330, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Carbide, Manufacturers Grade: T8330

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6834701 Turning Insert, ANSI Code: SNMG 432-NF:T8330, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Carbide, Manufacturers Grade: T8330

ManufacturerPramet

Part #816034701

MFG #6834701

UPC #3603603012639

Pramet Turning Insert, SNMG Insert, 432 Insert, Squared, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, NF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: SNMG 432-NF:T8330, ISO Code: SNMG 120408E-NF:T8330, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 432-NF:T8330

Chipbreaker: NF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNMG

ISO Code: SNMG 120408E-NF:T8330

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
NF chipbreaker - sharp and positive chipbreaker specially designed for stainless steel
Excellent chip formation ability
Low cutting forces increase suitability in unstable machine set-ups
High productivity
High durability and reliability as a result of combination materials

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, SNMG Insert, 432 Insert, Squared, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, NF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: SNMG 432-NF:T8330, ISO Code: SNMG 120408E-NF:T8330, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 432-NF:T8330

Chipbreaker: NF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNMG

ISO Code: SNMG 120408E-NF:T8330

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
NF chipbreaker - sharp and positive chipbreaker specially designed for stainless steel
Excellent chip formation ability
Low cutting forces increase suitability in unstable machine set-ups
High productivity
High durability and reliability as a result of combination materials

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
