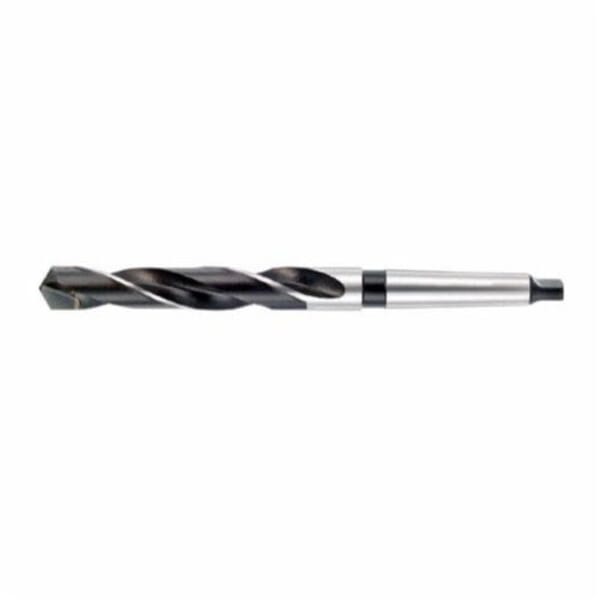

Dormer 5969823 A166 General Purpose Jobber Length Taper Shank Drill Bit, 20 mm Drill - Metric, 0.7874 in Drill - Decimal Inch, #2 Morse Taper Shank Taper, HSS HM

ManufacturerDormer

Part #816029992

MFG #0029992

UPC #7320760029992

Dormer Taper Shank Drill Bit, General Purpose Jobber Length, Series: A166, Metric/Imperial, 20 mm Drill - Metric, 0.7874 in Drill - Decimal Inch, 238 mm Overall Length, 4XD Cutting Depth, Spiral Flute, 140 mm Flute Length, #2 Morse Taper Shank Taper Designation, 118 deg Point, Thinned Web Point, Right Hand Cutting Direction, HSS HM Cutting Edge, No Through Coolant, HSS HM, Bright/Steam Oxide, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

$203.22

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS HM

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.7874 in

Drill Size - Metric: 20 mm

Finish: Bright/Steam Oxide

Flute Length: 140 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS HM

Overall Length: 238 mm

Point Angle: 118 deg

Point Type: Thinned Web

Series: A166

Shank Taper Designation: #2 Morse Taper

Through Coolant (Yes/No): No

Type: General Purpose Jobber Length

Carbide tips cuts faster than high speed steel
It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys
Bright provides a smooth, polished finish on the tool
It increases chip flow in softer materials such as aluminum, wood and plastic
Spiral flutes are constructed with a higher flute angle to remove chips more easily
Web-thinned
No coolant channel

For general drilling applications

DIN 345|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
