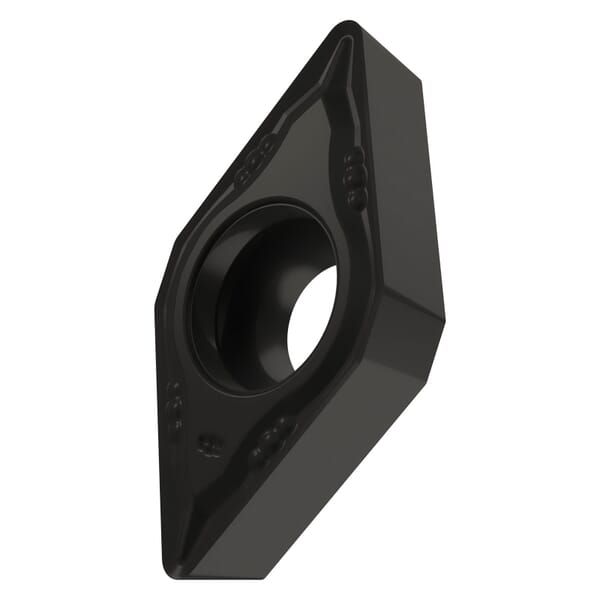

Name: Pramet 6922888 Turning Insert Pramet, ANSI Code: DCMT 21.50.5-FM T9315, DCMT Insert, Material Grade: H, K, P, 21.50.5 Insert, Diamond Shape, 7 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315
Brand: Dormer Pramet
SKU: DORMER_2001399
Availability: OutOfStock

Dormer Pramet

Pramet 6922888 Turning Insert Pramet, ANSI Code: DCMT 21.50.5-FM T9315, DCMT Insert, Material Grade: H, K, P, 21.50.5 Insert, Diamond Shape, 7 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6922888 Turning Insert Pramet, ANSI Code: DCMT 21.50.5-FM T9315, DCMT Insert, Material Grade: H, K, P, 21.50.5 Insert, Diamond Shape, 7 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816022888

MFG #6922888

UPC #3603603077140

Pramet Turning Insert Pramet, DCMT Insert, 21.50.5 Insert, Diamond, 0.039 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 3/32 in Thickness, 0.307 in Length, 7 Seat, Positive Rake, FM Chipbreaker, 1/128 in Corner Radius, 0.114 in Hole Dia, Manufacturers Grade: T9315, ANSI Code: DCMT 21.50.5-FM T9315, ISO Code: DCMT 070202E-FM T9315, 55 deg Included Angle, 7 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DCMT 21.50.5-FM T9315

Chipbreaker: FM

Corner Radius: 1/128 in

Country of Origin: CZ

Finish: Al2O3, CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 0.114 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 21.50.5

Insert Style: DCMT

ISO Code: DCMT 070202E-FM T9315

Length: 0.307 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.039 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 7

Shape: Diamond

Thickness: 3/32 in

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
Higher cutting speeds
Continuous to slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert Pramet, DCMT Insert, 21.50.5 Insert, Diamond, 0.039 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 3/32 in Thickness, 0.307 in Length, 7 Seat, Positive Rake, FM Chipbreaker, 1/128 in Corner Radius, 0.114 in Hole Dia, Manufacturers Grade: T9315, ANSI Code: DCMT 21.50.5-FM T9315, ISO Code: DCMT 070202E-FM T9315, 55 deg Included Angle, 7 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: DCMT 21.50.5-FM T9315

Chipbreaker: FM

Corner Radius: 1/128 in

Country of Origin: CZ

Finish: Al2O3, CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 0.114 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 21.50.5

Insert Style: DCMT

ISO Code: DCMT 070202E-FM T9315

Length: 0.307 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.039 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 7

Shape: Diamond

Thickness: 3/32 in

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
Higher cutting speeds
Continuous to slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert Pramet, DCMT Insert, 21.50.5 Insert, Diamond, 0.039 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 3/32 in Thickness, 0.307 in Length, 7 Seat, Positive Rake, FM Chipbreaker, 1/128 in Corner Radius, 0.114 in Hole Dia, Manufacturers Grade: T9315, ANSI Code: DCMT 21.50.5-FM T9315, ISO Code: DCMT 070202E-FM T9315, 55 deg Included Angle, 7 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel
