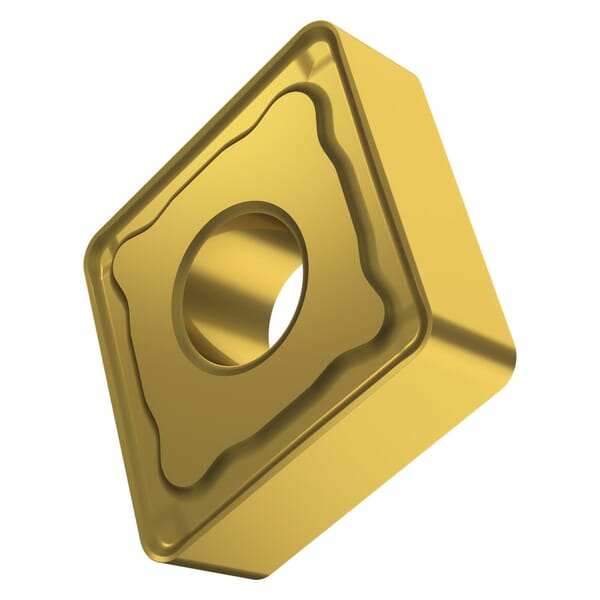

Name: Pramet 6922662 Turning Insert, ANSI Code: CNMG 431-NM:T8315, CNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys
Brand: Dormer Pramet
SKU: DORMER_2000865
Availability: OutOfStock

Dormer Pramet

Pramet 6922662 Turning Insert, ANSI Code: CNMG 431-NM:T8315, CNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6922662 Turning Insert, ANSI Code: CNMG 431-NM:T8315, CNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

ManufacturerPramet

Part #816022662

MFG #6922662

UPC #3603603072886

Pramet Turning Insert, CNMG Insert, 431 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, NM Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: CNMG 431-NM:T8315, ISO Code: CNMG 120404E-NM:T8315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 431-NM:T8315

Chipbreaker: NM

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: CNMG

ISO Code: CNMG 120404E-NM:T8315

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Higher cutting speeds
Medium chip cross sections
Stable machining conditions

Pramet Turning Insert, CNMG Insert, 431 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, NM Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: CNMG 431-NM:T8315, ISO Code: CNMG 120404E-NM:T8315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 431-NM:T8315

Chipbreaker: NM

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: CNMG

ISO Code: CNMG 120404E-NM:T8315

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Higher cutting speeds
Medium chip cross sections
Stable machining conditions

Pramet Turning Insert, CNMG Insert, 431 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, NM Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: CNMG 431-NM:T8315, ISO Code: CNMG 120404E-NM:T8315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
