Name: Pramet 6922512 Positive Milling Insert, ADEX Insert, 11T308 Insert, Carbide, Manufacturers Grade: M8310, 85 deg Parallelogram Shape
Brand: Dormer Pramet
SKU: DORMER_2000011
Availability: OutOfStock

Dormer Pramet

Pramet 6922512 Positive Milling Insert, ADEX Insert, 11T308 Insert, Carbide, Manufacturers Grade: M8310, 85 deg Parallelogram Shape

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6922512 Positive Milling Insert, ADEX Insert, 11T308 Insert, Carbide, Manufacturers Grade: M8310, 85 deg Parallelogram Shape

ManufacturerPramet

Part #816022512

MFG #6922512

UPC #3603603072343

Pramet Milling Insert, Positive, ADEX Insert, 11T308 Insert, 85 deg Parallelogram, 6.35 mm Inscribed Circle, 3.97 mm Thickness, 10.665 mm Length, HF Chipbreaker, 0.8 mm Corner Radius, 15 deg Lead Angle, 2.9 mm Hole Dia, Manufacturers Grade: M8310, ISO Code: ADEX 11T308SR-HF M8310, Right Hand, Carbide, Hardened Steel, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloy Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

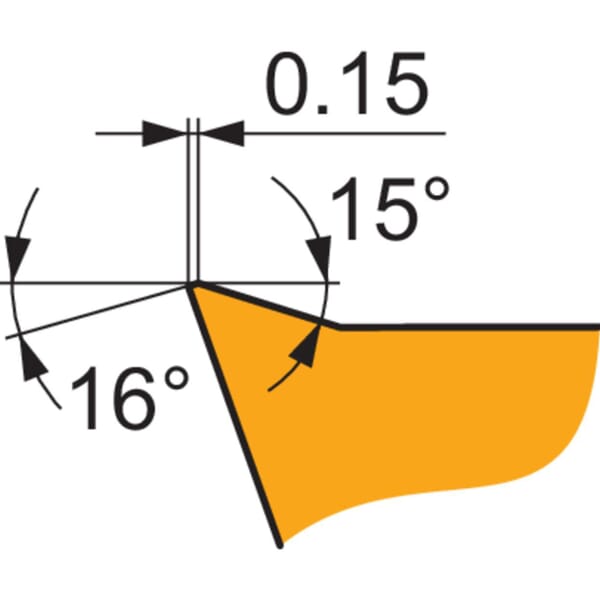

Chipbreaker: HF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 2.9 mm

Inscribed Circle: 6.35 mm

Insert Size: 11T308

Insert Style: ADEX

ISO Code: ADEX 11T308SR-HF M8310

Lead Angle: 15 deg

Length: 10.665 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: M8310

Material: Carbide

Material Application: Hardened Steel, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloy

Shape: 85 deg Parallelogram

Thickness: 3.97 mm

Type: Positive

Highly abrasion resistant material
Ultra submicron substrate with a relatively low bonding agent content
Special final coating finish
Suited to stable machining conditions

Pramet Milling Insert, Positive, ADEX Insert, 11T308 Insert, 85 deg Parallelogram, 6.35 mm Inscribed Circle, 3.97 mm Thickness, 10.665 mm Length, HF Chipbreaker, 0.8 mm Corner Radius, 15 deg Lead Angle, 2.9 mm Hole Dia, Manufacturers Grade: M8310, ISO Code: ADEX 11T308SR-HF M8310, Right Hand, Carbide, Hardened Steel, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloy Material Application

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

Chipbreaker: HF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 2.9 mm

Inscribed Circle: 6.35 mm

Insert Size: 11T308

Insert Style: ADEX

ISO Code: ADEX 11T308SR-HF M8310

Lead Angle: 15 deg

Length: 10.665 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: M8310

Material: Carbide

Material Application: Hardened Steel, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloy

Shape: 85 deg Parallelogram

Thickness: 3.97 mm

Type: Positive

Highly abrasion resistant material
Ultra submicron substrate with a relatively low bonding agent content
Special final coating finish
Suited to stable machining conditions

Pramet Milling Insert, Positive, ADEX Insert, 11T308 Insert, 85 deg Parallelogram, 6.35 mm Inscribed Circle, 3.97 mm Thickness, 10.665 mm Length, HF Chipbreaker, 0.8 mm Corner Radius, 15 deg Lead Angle, 2.9 mm Hole Dia, Manufacturers Grade: M8310, ISO Code: ADEX 11T308SR-HF M8310, Right Hand, Carbide, Hardened Steel, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloy Material Application

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
