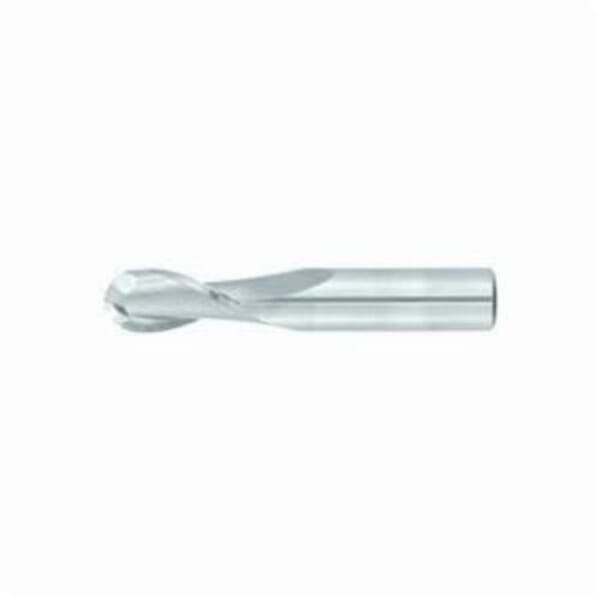

Seco Niagara Cutter 17001453 CB230 Ball End Center Cutting Single End Stub Length End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

ManufacturerSeco

Part #803655649

MFG #N55649

Seco Niagara Cutter End Mill, Ball End Center Cutting Single End Stub Length, Series: 429h6M, 1/2 in Cutter Dia, 2-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: CB230-0.500-D1-B.0-Z2, ISO Code: CB230.500D1B.0Z2, Solid Carbide, TiAlN Coated

$54.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: CB230-0.500-D1-B.0-Z2

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: CB230.500D1B.0Z2

Length of Cut: 5/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/2 in

Series: CB230

Shank Diameter: 1/2 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End Stub Length

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
90 deg cutting edge
1.781 in L minimum clamping
30 deg axial rake
10 deg radial rake
Ball nose end mills create contoured surfaces
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tools ability to remove material
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Ball End Center Cutting Single End Stub Length, Series: 429h6M, 1/2 in Cutter Dia, 2-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: CB230-0.500-D1-B.0-Z2, ISO Code: CB230.500D1B.0Z2, Solid Carbide, TiAlN Coated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: CB230-0.500-D1-B.0-Z2

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: CB230.500D1B.0Z2

Length of Cut: 5/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/2 in

Series: CB230

Shank Diameter: 1/2 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End Stub Length

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
90 deg cutting edge
1.781 in L minimum clamping
30 deg axial rake
10 deg radial rake
Ball nose end mills create contoured surfaces
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tools ability to remove material
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Ball End Center Cutting Single End Stub Length, Series: 429h6M, 1/2 in Cutter Dia, 2-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: CB230-0.500-D1-B.0-Z2, ISO Code: CB230.500D1B.0Z2, Solid Carbide, TiAlN Coated
