Name: Seco Niagara Cutter 02942331 MZN410R Center Cutting High Feed Single End Stub Length End Mill, 3/8 in Dia Cutter, 0.08 in Corner Radius, 0.08 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, AlTiN
Brand: Seco Tools
SKU: Seco_000008
Availability: OutOfStock

Seco Tools

Seco Niagara Cutter 02942331 MZN410R Center Cutting High Feed Single End Stub Length End Mill, 3/8 in Dia Cutter, 0.08 in Corner Radius, 0.08 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, AlTiN

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco Niagara Cutter 02942331 MZN410R Center Cutting High Feed Single End Stub Length End Mill, 3/8 in Dia Cutter, 0.08 in Corner Radius, 0.08 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, AlTiN

ManufacturerSeco

Part #803600008

MFG #N00008

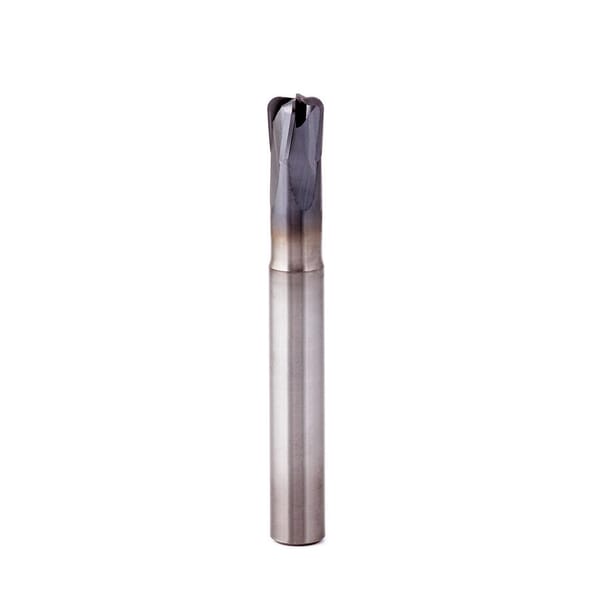

Seco Niagara Cutter End Mill, Center Cutting High Feed Single End Stub Length, Series: MZN410R, 3/8 in Diameter Cutter, 0.08 in Corner Radius, 3 in Overall Length, 0.08 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 10 deg Helix Angle, Cylindrical Shank, ANSI Code: MZN410R-0.375-E1-R080.0-Z4, ISO Code: MZN410R.375E1R080.0Z4 Z4, Solid Carbide, AlTiN

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: MZN410R-0.375-E1-R080.0-Z4

Corner Radius: 0.08 in

Country of Origin: US

Cutter Diameter: 3/8 in

Cutting Direction: Right Hand

Finish: AlTiN, AlTiN Coated

Flute Type: Spiral

Helix Angle: 10 deg

ISO Code: MZN410R.375E1R080.0Z4 Z4

Length of Cut: 0.08 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: MZN410R

Shank Diameter: 3/8 in

Shank Type: Cylindrical

Type: Center Cutting High Feed Single End Stub Length

Strong end tooth design
Hardened steels and nickel based super alloys such as inconel
Edge preparation for increased cutting edge strength
2 deg back taper with reduced neck diameter for workpiece clearance

The MZN410R are designed to maximize productivity in hardened steels and super alloys. These end mills feature optimized substrate, geometry and coating to offer superior performance and process reliability. These high feed end mills are available in 1/8 to 5/8 in diameters, in four or five flute options, depending on the diameter. This range also features a short and long reach option to fit various work piece requirements. The MZN410R and MZN510R are effective in hardened steels, cast irons and nickel based super alloys. A typical application for this end mill is when machining hardened tool steels used in mold and die components. High feed milling (HFM) can reduce machining times and cut costs allowing one tool to be used in a wide range of operations and strategies. Reduce component costs by maximizing material removal rates and reduce processing time by allowing close to profile pocketing of 90 deg walls. HFM can also minimize semi-finishing operations, thus further increasing efficiency. The open end tooth design provides superior chip evacuation. This provides process reliability because chips are effectively removed from the cutting zone and not being "re-cut" which leads to edge chipping.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: MZN410R-0.375-E1-R080.0-Z4

Corner Radius: 0.08 in

Country of Origin: US

Cutter Diameter: 3/8 in

Cutting Direction: Right Hand

Finish: AlTiN, AlTiN Coated

Flute Type: Spiral

Helix Angle: 10 deg

ISO Code: MZN410R.375E1R080.0Z4 Z4

Length of Cut: 0.08 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: MZN410R

Shank Diameter: 3/8 in

Shank Type: Cylindrical

Type: Center Cutting High Feed Single End Stub Length

Strong end tooth design
Hardened steels and nickel based super alloys such as inconel
Edge preparation for increased cutting edge strength
2 deg back taper with reduced neck diameter for workpiece clearance

The MZN410R are designed to maximize productivity in hardened steels and super alloys. These end mills feature optimized substrate, geometry and coating to offer superior performance and process reliability. These high feed end mills are available in 1/8 to 5/8 in diameters, in four or five flute options, depending on the diameter. This range also features a short and long reach option to fit various work piece requirements. The MZN410R and MZN510R are effective in hardened steels, cast irons and nickel based super alloys. A typical application for this end mill is when machining hardened tool steels used in mold and die components. High feed milling (HFM) can reduce machining times and cut costs allowing one tool to be used in a wide range of operations and strategies. Reduce component costs by maximizing material removal rates and reduce processing time by allowing close to profile pocketing of 90 deg walls. HFM can also minimize semi-finishing operations, thus further increasing efficiency. The open end tooth design provides superior chip evacuation. This provides process reliability because chips are effectively removed from the cutting zone and not being "re-cut" which leads to edge chipping.
