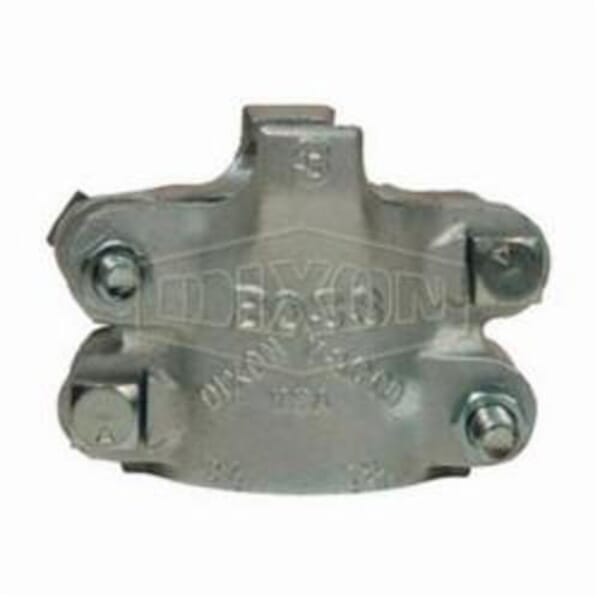

Dixon BU9 Boss 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDixon BU9 Boss 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band
ManufacturerDixon
Part #746460008
MFG #BU9
Dixon 2-Bolt Clamp, Series: Boss, 3/4 in Inside Dia, 1-10/64 to 1-20/64 in Outside Dia, 2-31/32 in Length, 2-9/16 in Width, 9/16 in Hex Bolt, 21 ft lb, Iron Band, Zinc Plated
$12.17
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Dixon Valve & CouplingBand Material:Â IronBolt Size:Â 9/16 in HexFinish:Â Zinc PlatedInside Diameter:Â 3/4 inLength:Â 2-31/32 inManufacturer Name:Â Dixon Valve & CouplingOutside Diameter:Â 1-10/64 to 1-20/64 inSeries:Â BossTorque Rating:Â 21 ft-lbWidth:Â 2-9/16 in
- Recommended for steam service up to 450 deg F
- Replacement nuts and bolts are available
- Two gripping fingers and two clamps sections
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
- These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts
- The use of lubricant on bolts will adversely effect clamps performance
- Do not lubricate nuts and bolts
- Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter
- Always tighten bolts to their specified torque values
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss clamps are for single use only, once removed they are to be discarded
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- Do not use in connections with drinking water
- Wash hands after handling
- Global investment cast carbon steel
- Manufacturer Name:Â Dixon Valve & CouplingBand Material:Â IronBolt Size:Â 9/16 in HexFinish:Â Zinc PlatedInside Diameter:Â 3/4 inLength:Â 2-31/32 inManufacturer Name:Â Dixon Valve & CouplingOutside Diameter:Â 1-10/64 to 1-20/64 inSeries:Â BossTorque Rating:Â 21 ft-lbWidth:Â 2-9/16 in
- Recommended for steam service up to 450 deg F
- Replacement nuts and bolts are available
- Two gripping fingers and two clamps sections
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
- These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts
- The use of lubricant on bolts will adversely effect clamps performance
- Do not lubricate nuts and bolts
- Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter
- Always tighten bolts to their specified torque values
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss clamps are for single use only, once removed they are to be discarded
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- Do not use in connections with drinking water
- Wash hands after handling
- Global investment cast carbon steel
