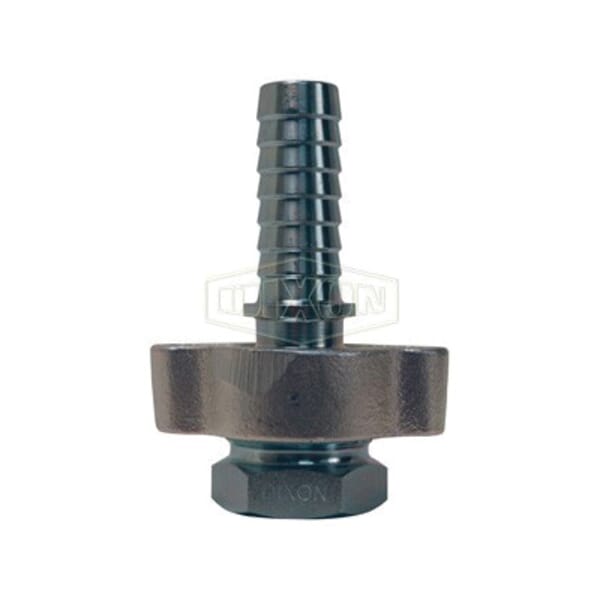

Dixon GF26 Boss Ground Joint Seal, 3/4 in Nominal, FNPT End Style, Iron/Steel, Domestic
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDixon GF26 Boss Ground Joint Seal, 3/4 in Nominal, FNPT End Style, Iron/Steel, Domestic
ManufacturerDixon
Part #746460002
MFG #GF26
Dixon Ground Joint Seal, Series: Boss, Adapter Fitting/Connector, 3/4 in Nominal, FNPT End Style, 450 deg F, Iron/Steel, Plated, 3-9/16 in W x 4-15/16 in H Dimensions, Domestic
$41.77
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Dixon Valve & CouplingCountry of Origin:Â USDimensions:Â 3-9/16 in W x 4-15/16 in HDomestic/Import:Â DomesticEnd Style:Â FNPTFinish:Â PlatedFitting/Connector Type:Â AdapterManufacturer Name:Â Dixon Valve & CouplingMaterial:Â Iron/SteelNominal Size:Â 3/4 inSeries:Â BossTemperature Rating:Â 450 deg F
- The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Positive metal-to-polymer seal
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
- Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
- Easy to seal
- Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections, they are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
- Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturers product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID, Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
- Manufacturer Name:Â Dixon Valve & CouplingCountry of Origin:Â USDimensions:Â 3-9/16 in W x 4-15/16 in HDomestic/Import:Â DomesticEnd Style:Â FNPTFinish:Â PlatedFitting/Connector Type:Â AdapterManufacturer Name:Â Dixon Valve & CouplingMaterial:Â Iron/SteelNominal Size:Â 3/4 inSeries:Â BossTemperature Rating:Â 450 deg F
- The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Positive metal-to-polymer seal
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
- Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
- Easy to seal
- Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections, they are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
- Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturers product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID, Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
