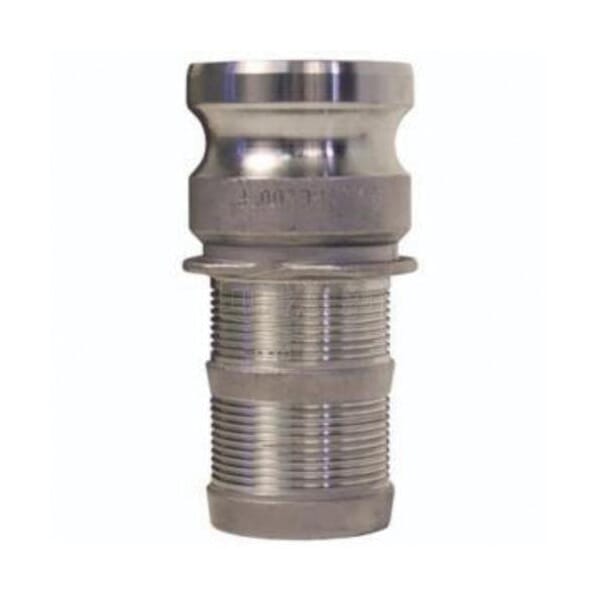

Dixon RE200PF Boss-Lock Type E Cam and Groove Adapter, 2 in, Male Adapter x Hose Shank, 316 Stainless Steel, Domestic
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDixon RE200PF Boss-Lock Type E Cam and Groove Adapter, 2 in, Male Adapter x Hose Shank, 316 Stainless Steel, Domestic
ManufacturerDixon
Part #746445200
MFG #RE200PF
Dixon Cam and Groove Adapter, Type E, Series: Boss-Lock, Adapter, 2 in Nominal, Male Adapter x Hose Shank, 5-3/64 in Length, 250 psi, 316 Stainless Steel, Domestic
$144.90
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Dixon Valve & CouplingCountry of Origin:Â USDomestic/Import:Â DomesticEnd Style:Â Male Adapter x Hose ShankFitting/Connector Type:Â AdapterLength:Â 5-3/64 inManufacturer Name:Â Dixon Valve & CouplingMaterial:Â 316 Stainless SteelNominal Size:Â 2 inPressure Rating:Â 250 psiSeries:Â Boss-LockType:Â Type E
- The shank design on these fittings was developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps
- In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock-PF fitting showed significant improvement in hose coupling retention over the conventional cam and groove shank design
- Produced to interchange with all product produced to Commercial item Description A-A-59326D
- For best results we recommend the use of 3/4 in wide band clamps
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Pressure rating is based on the seal of the mating part
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Manufacturer Name:Â Dixon Valve & CouplingCountry of Origin:Â USDomestic/Import:Â DomesticEnd Style:Â Male Adapter x Hose ShankFitting/Connector Type:Â AdapterLength:Â 5-3/64 inManufacturer Name:Â Dixon Valve & CouplingMaterial:Â 316 Stainless SteelNominal Size:Â 2 inPressure Rating:Â 250 psiSeries:Â Boss-LockType:Â Type E
- The shank design on these fittings was developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps
- In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock-PF fitting showed significant improvement in hose coupling retention over the conventional cam and groove shank design
- Produced to interchange with all product produced to Commercial item Description A-A-59326D
- For best results we recommend the use of 3/4 in wide band clamps
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Pressure rating is based on the seal of the mating part
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
