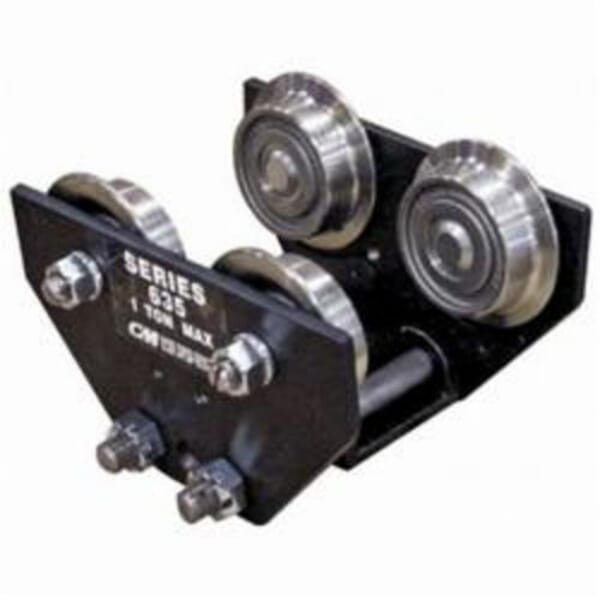

CM 3569 635 Push Trolley, 4000 lb Load, 3-3/8 to 6 in, 6 to 18 in, 24 in, 4-3/4 in

ManufacturerCM

Part #736063569

MFG #3569

UPC #043927635696

CM Push Trolley, Series: 635, 4000 lb, Fits Beam Flange Width: 3-3/8 to 6 in, Fits Beam Height: 6 to 18 in, 24 in Minimum Radius Curve, 4-3/4 in Wheel Tread Dia, Cast Iron Wheel

$971.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Columbus McKinnon

Fits Beam Flange Width: 3-3/8 to 6 in

Fits Beam Height: 6 to 18 in

Load Capacity: 4000 lb

Minimum Radius Curve: 24 in

Series: 635

Wheel Material: Cast Iron

Wheel Tread Diameter: 4-3/4 in

Fits wide range of beam sizes for maximum versatility
Steel plate side frames
Steel spur gearing for optimum strength and smear operation
Universal tread track wheels that operate on standard S-beams or flat flanged beams
Lifetime lubricated double row ball bearings for high efficiency, low maintenance
Optional trolley guards
Metric rated
For use with lug suspended lodestar electric chain hoists
No spark resistant

For low headroom applications
