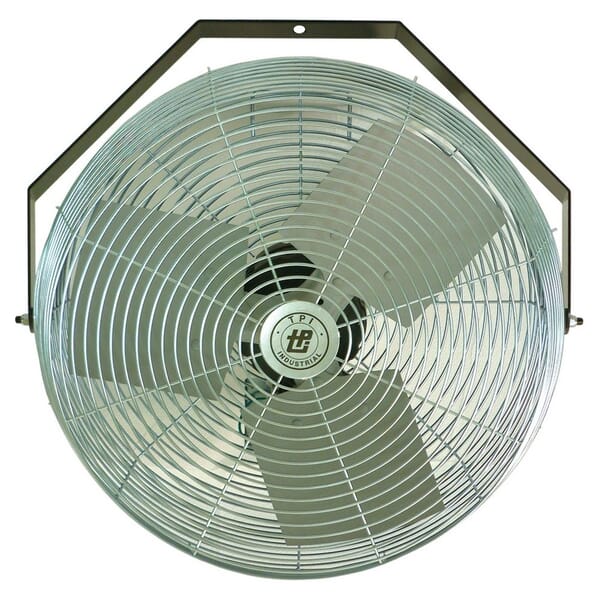

Name: TPI U18TE 1-Phase Standard Workstation Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 V AC, 2.2 A
Brand: TPI Corporation
SKU: IDW_8936303
Availability: OutOfStock

TPI Corporation

TPI U18TE 1-Phase Standard Workstation Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 V AC, 2.2 A

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

TPI Corporation

TPI U18TE 1-Phase Standard Workstation Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 V AC, 2.2 A

ManufacturerTPI

Part #633479728

MFG #07972802

UPC #686334797283

TPI Workstation Fan, 1-Phase Standard, 18 in Blade, 3200/4200/4600 cfm, 1370/1550/1660 rpm Speed, 1/8 hp Power, 120 V AC, 2.2 A, 3 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Ceiling/Machine/Workbench Mounting, SJT 10 ft Cord, 20-1/2 in H x 20-1/2 in W x 10-1/2 in D Dimensions, Import

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: TPI Corporation

Amperage Rating: 2.2 A

Blade Material: Aluminum

Blade Size: 18 in

Blade Type: Paddle

Control Type: Pull Chain

Cord Type: SJT 10 ft

Country of Origin: CN

Dimensions: 20-1/2 in H x 20-1/2 in W x 10-1/2 in D

Domestic/Import: Import

Flow Rate: 3200/4200/4600 cfm

Housing Material: Steel

Manufacturer Name: TPI Corporation

Motor Type: AC

Mounting Type: Ceiling/Machine/Workbench

Number of Speeds: 3

Power Rating: 1/8 hp

Speed: 1370/1550/1660 rpm

Type: 1-Phase Standard

Voltage Rating: 120 V AC, 120 VAC

Head rotates 360 deg vertically and horizontally
Coated steel guards
SJT type 3 conductor, 10 ft L cord
Steel hub/spider aluminum paddle blades
Sleeve bearing, totally enclosed and permanently lubricated motor
5/16 in Dia shaft
#48 motor frame
2900 cfm/125 sq-ft area velocity profile
Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface
Flow rate is measured 2 ft from face of fan

TPI Workstation Fan, 1-Phase Standard, 18 in Blade, 3200/4200/4600 cfm, 1370/1550/1660 rpm Speed, 1/8 hp Power, 120 V AC, 2.2 A, 3 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Ceiling/Machine/Workbench Mounting, SJT 10 ft Cord, 20-1/2 in H x 20-1/2 in W x 10-1/2 in D Dimensions, Import

cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Catalog

Specification Sheet

Warranty Information

Manufacturer Name: TPI Corporation

Amperage Rating: 2.2 A

Blade Material: Aluminum

Blade Size: 18 in

Blade Type: Paddle

Control Type: Pull Chain

Cord Type: SJT 10 ft

Country of Origin: CN

Dimensions: 20-1/2 in H x 20-1/2 in W x 10-1/2 in D

Domestic/Import: Import

Flow Rate: 3200/4200/4600 cfm

Housing Material: Steel

Manufacturer Name: TPI Corporation

Motor Type: AC

Mounting Type: Ceiling/Machine/Workbench

Number of Speeds: 3

Power Rating: 1/8 hp

Speed: 1370/1550/1660 rpm

Type: 1-Phase Standard

Voltage Rating: 120 V AC, 120 VAC

Head rotates 360 deg vertically and horizontally
Coated steel guards
SJT type 3 conductor, 10 ft L cord
Steel hub/spider aluminum paddle blades
Sleeve bearing, totally enclosed and permanently lubricated motor
5/16 in Dia shaft
#48 motor frame
2900 cfm/125 sq-ft area velocity profile
Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface
Flow rate is measured 2 ft from face of fan

TPI Workstation Fan, 1-Phase Standard, 18 in Blade, 3200/4200/4600 cfm, 1370/1550/1660 rpm Speed, 1/8 hp Power, 120 V AC, 2.2 A, 3 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Ceiling/Machine/Workbench Mounting, SJT 10 ft Cord, 20-1/2 in H x 20-1/2 in W x 10-1/2 in D Dimensions, Import

cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Catalog

Specification Sheet

Warranty Information
