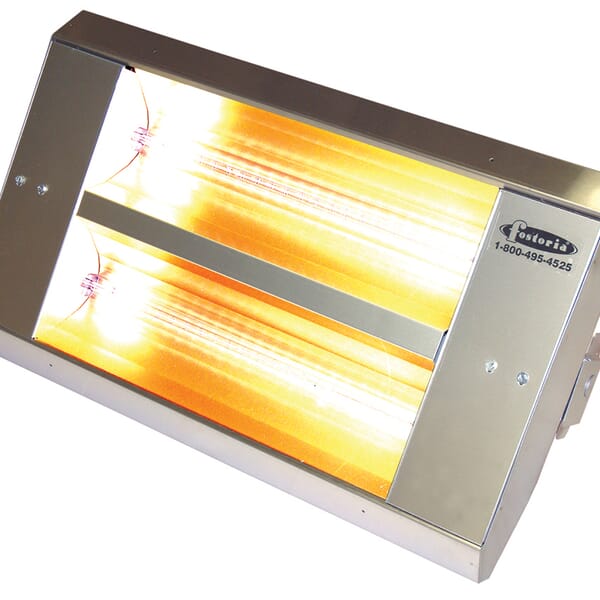

TPI Fostoria 22260THSS480V THSS 1 Phase Mul-T-Mount Electric Infrared Heater, 10922 Btu/hr Capacity, 480 V AC, 3.2 kW Power Rating
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsTPI Fostoria 22260THSS480V THSS 1 Phase Mul-T-Mount Electric Infrared Heater, 10922 Btu/hr Capacity, 480 V AC, 3.2 kW Power Rating
ManufacturerTPI
Part #633448144
MFG #22260THSS480V
UPC #686334481441
TPI Fostoria Electric Infrared Heater, 1 Phase Mul-T-Mount, Series: THSS, 10922 Btu/hr, 480 V AC, 3.2 kW, 2 Lamps, 60 deg Symmetrical Beam Pattern, Stainless Steel, 24 in L x 15 in W x 10-7/8 in H
$956.80
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â TPI CorporationBeam Pattern:Â 60 deg SymmetricalCapacity:Â 10922 Btu/hrCountry of Origin:Â USDimensions:Â 24 in L x 15 in W x 10-7/8 in HManufacturer Name:Â TPI CorporationMaterial:Â Stainless SteelNumber of Lamps:Â 2Power Rating:Â 3.2 kWSeries:Â THSSType:Â 1 Phase Mul-T-MountVoltage Rating:Â 480 V AC, 480 VAC
(2) Clear Quartz Lamps
- Listed for suspended, totally exposed (outdoor), high bay (indoor) comfort heating and exterior snow and ice control applications
- Listed for recessed applications
- 20 ga painted stainless steel housings
- Gold anodized aluminum reflectors and end caps
- 50% higher watt densities for 3-element units
- 2-Lamp wiring
- High temperature lead wires
- In-built surface mounting bracket allows for fixture adjustment up to a 45 deg horizontal tilt
- In-built surface mounting brackets attached to the top wiring channel
- 0 to 45 deg tilt at 15 deg increments
- Stainless steel models have non-corrosive housing, hardware and brackets, no ferrous metals used in the unit
- Durable in harsh atmospheres and outdoor environments
- 23-1/2 in mounting centers
- 63016489 replacement element
- TPI Fostoria Electric Infrared Heater, 1 Phase Mul-T-Mount, Series: THSS, 10922 Btu/hr, 480 V AC, 3.2 kW, 2 Lamps, 60 deg Symmetrical Beam Pattern, Stainless Steel, 24 in L x 15 in W x 10-7/8 in H
- (2) Clear Quartz Lamps
- ARRA Compliant|Buy American Act Compliant|cETLus Listed|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
- 1 Year Limited
- Manufacturer Name:Â TPI CorporationBeam Pattern:Â 60 deg SymmetricalCapacity:Â 10922 Btu/hrCountry of Origin:Â USDimensions:Â 24 in L x 15 in W x 10-7/8 in HManufacturer Name:Â TPI CorporationMaterial:Â Stainless SteelNumber of Lamps:Â 2Power Rating:Â 3.2 kWSeries:Â THSSType:Â 1 Phase Mul-T-MountVoltage Rating:Â 480 V AC, 480 VAC
(2) Clear Quartz Lamps
- Listed for suspended, totally exposed (outdoor), high bay (indoor) comfort heating and exterior snow and ice control applications
- Listed for recessed applications
- 20 ga painted stainless steel housings
- Gold anodized aluminum reflectors and end caps
- 50% higher watt densities for 3-element units
- 2-Lamp wiring
- High temperature lead wires
- In-built surface mounting bracket allows for fixture adjustment up to a 45 deg horizontal tilt
- In-built surface mounting brackets attached to the top wiring channel
- 0 to 45 deg tilt at 15 deg increments
- Stainless steel models have non-corrosive housing, hardware and brackets, no ferrous metals used in the unit
- Durable in harsh atmospheres and outdoor environments
- 23-1/2 in mounting centers
- 63016489 replacement element
- TPI Fostoria Electric Infrared Heater, 1 Phase Mul-T-Mount, Series: THSS, 10922 Btu/hr, 480 V AC, 3.2 kW, 2 Lamps, 60 deg Symmetrical Beam Pattern, Stainless Steel, 24 in L x 15 in W x 10-7/8 in H
- (2) Clear Quartz Lamps
- ARRA Compliant|Buy American Act Compliant|cETLus Listed|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
- 1 Year Limited
