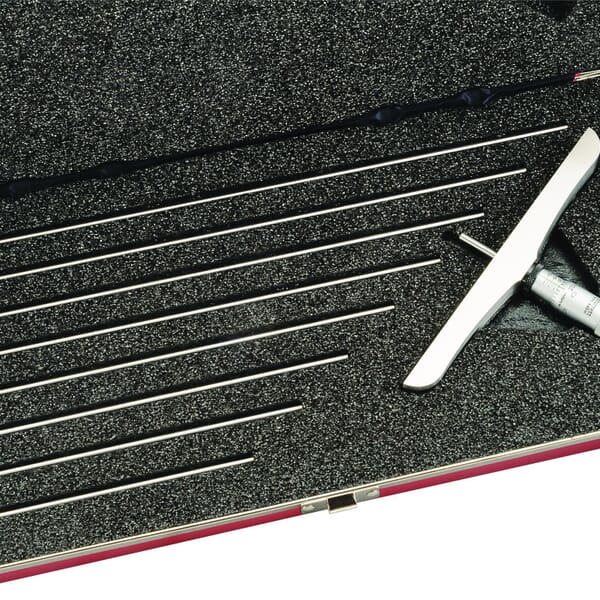

Starrett 445DZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsStarrett 445DZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome
ManufacturerStarrett
Part #530452252
MFG #52252
UPC #049659522525
- Manufacturer Name:Â L.S. StarrettAccuracy:Â +/-0.0001 in Mic Head, +/-0.0002 in RodsCountry of Origin:Â USFinish:Â Satin ChromeGraduations:Â 0.001 inManufacturer Name:Â L.S. StarrettMeasuring Range:Â 0 to 9 inSeries:Â 445Thimble Type:Â RatchetType:Â Mechanical
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 6 in (150mm) base and 5/32 in (4mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- Satin chrome reading surface is glare free and resists rust
#445 Lock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 0.291-40 SCR. Spindle, Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D x 0.156L Ratchet Pin, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, 3-4 in Rod Assembly, 4-5 in Rod Assembly, 5-6 in Rod Assembly, 6-7 in Rod Assembly, 7-8 in Rod Assembly, 8-9 in Rod Assembly, #3 Wrench, 0.125-40 Replacement Rod Nut and Steel/Vinyl Case Only
- PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- #445 Lock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 0.291-40 SCR. Spindle, Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D x 0.156L Ratchet Pin, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, 3-4 in Rod Assembly, 4-5 in Rod Assembly, 5-6 in Rod Assembly, 6-7 in Rod Assembly, 7-8 in Rod Assembly, 8-9 in Rod Assembly, #3 Wrench, 0.125-40 Replacement Rod Nut and Steel/Vinyl Case Only
- The Starrett 440, 440M, 445, 445M Series Depth Micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. 0-9" Range, 6" Base, 9 Rods, Ratchet Stop, Lock Nut, Case.
- Manufacturer Name:Â L.S. StarrettAccuracy:Â +/-0.0001 in Mic Head, +/-0.0002 in RodsCountry of Origin:Â USFinish:Â Satin ChromeGraduations:Â 0.001 inManufacturer Name:Â L.S. StarrettMeasuring Range:Â 0 to 9 inSeries:Â 445Thimble Type:Â RatchetType:Â Mechanical
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 6 in (150mm) base and 5/32 in (4mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- Satin chrome reading surface is glare free and resists rust
#445 Lock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 0.291-40 SCR. Spindle, Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D x 0.156L Ratchet Pin, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, 3-4 in Rod Assembly, 4-5 in Rod Assembly, 5-6 in Rod Assembly, 6-7 in Rod Assembly, 7-8 in Rod Assembly, 8-9 in Rod Assembly, #3 Wrench, 0.125-40 Replacement Rod Nut and Steel/Vinyl Case Only
- PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- #445 Lock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 0.291-40 SCR. Spindle, Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D x 0.156L Ratchet Pin, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, 3-4 in Rod Assembly, 4-5 in Rod Assembly, 5-6 in Rod Assembly, 6-7 in Rod Assembly, 7-8 in Rod Assembly, 8-9 in Rod Assembly, #3 Wrench, 0.125-40 Replacement Rod Nut and Steel/Vinyl Case Only
- The Starrett 440, 440M, 445, 445M Series Depth Micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. 0-9" Range, 6" Base, 9 Rods, Ratchet Stop, Lock Nut, Case.
