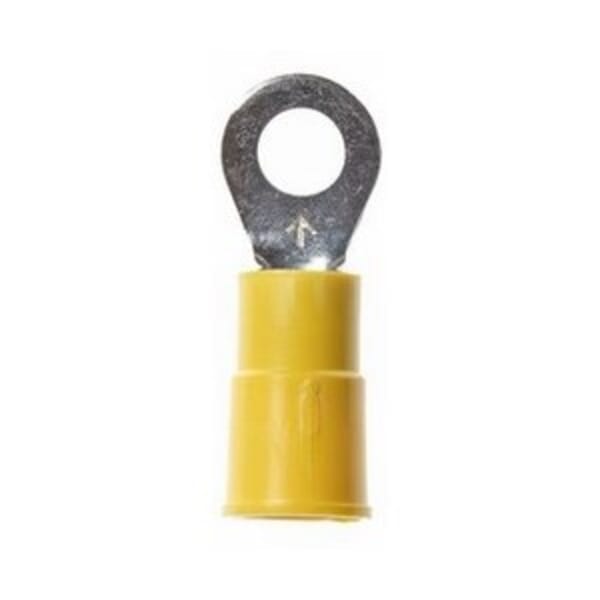

Highland 7000133671 Insulated Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel, Vinyl, Yellow

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

3M

Highland 7000133671 Insulated Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel, Vinyl, Yellow

ManufacturerHighland

Part #400770329

MFG #7000133671

UPC #051128600320

Highland, 7000133671, Terminal, Insulated, 12 to 10 AWG Conductor, #10 Stud, 1.03 in Length, Butted Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600/1000 VAC, Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow

$12.99

/ BG

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Barrel Size: 0.135 in ID x 0.25 in L

Barrel Type: Butted Seam

Color: Yellow

Conductor Size: 12 to 10 AWG

Country of Origin: US

Finish: Tin Plated

Length: 1.03 in

Manufacturer Name: 3M

Material: Vinyl

Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance

Stud Size: #10

Temperature Rating: -40 to 221 deg F

Tongue Size: 0.38 in W x 0.04 in THK

Tongue Type: Ring

Type: Insulated Standard

Voltage Rating: 600/1000 VAC

Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
Crimp termination
Free hanging (in-line) mounting
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Standard-style ring tongue fits around the stud
Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)

3M Highland Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

RoHS Compliant|UL File No. E23438|CSA File No. LR22190

Line Drawing

SDS

Specification Sheet

Manufacturer Name: 3M

Barrel Size: 0.135 in ID x 0.25 in L

Barrel Type: Butted Seam

Color: Yellow

Conductor Size: 12 to 10 AWG

Country of Origin: US

Finish: Tin Plated

Length: 1.03 in

Manufacturer Name: 3M

Material: Vinyl

Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance

Stud Size: #10

Temperature Rating: -40 to 221 deg F

Tongue Size: 0.38 in W x 0.04 in THK

Tongue Type: Ring

Type: Insulated Standard

Voltage Rating: 600/1000 VAC

Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
Crimp termination
Free hanging (in-line) mounting
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Standard-style ring tongue fits around the stud
Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)

3M Highland Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

RoHS Compliant|UL File No. E23438|CSA File No. LR22190

Line Drawing

SDS

Specification Sheet
