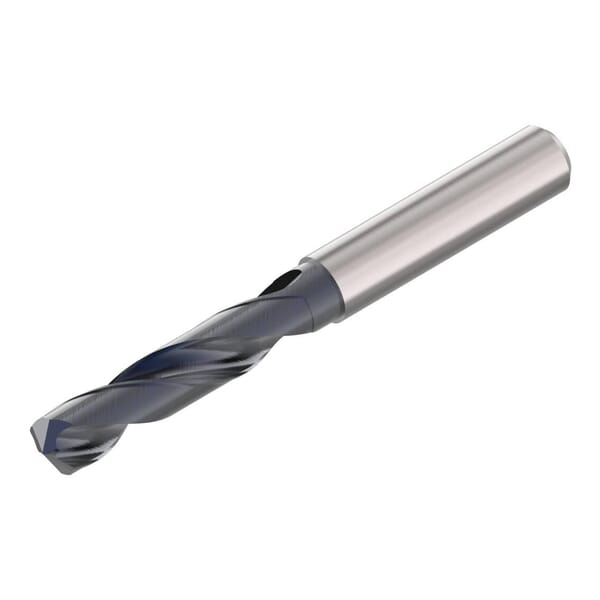

Name: Seco 02899020 SD1103 Universal Short Length Drill Bit With Through Coolant Supply, 1/4 in Drill - Fraction, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, Solid Carbide, TiAlN
Brand: Seco Tools
SKU: SECO_Q2_2020_001519
Availability: OutOfStock

Seco Tools

Seco 02899020 SD1103 Universal Short Length Drill Bit With Through Coolant Supply, 1/4 in Drill - Fraction, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, Solid Carbide, TiAlN

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02899020 SD1103 Universal Short Length Drill Bit With Through Coolant Supply, 1/4 in Drill - Fraction, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, Solid Carbide, TiAlN

ManufacturerSeco

Part #288599020

MFG #02899020

Seco Short Length Drill Bit, Universal, Series: SD1103, Imperial Drill Diameter Measurement System, 1/4 in Drill Size - Fraction, 6.35 mm Drill Size - Metric, 0.25 in Drill Size - Decimal Inch, 3.11 in Overall Length, 3xD Cutting Depth, 2 Flutes, Spiral Flute, 1.339 in Flute Length, 0.315 in Dia x 1.417 in L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiAlN, Applicable Materials: Cast Iron, Hard Materials, Steel and Stainless Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Applicable Materials: Cast Iron, Hard Materials, Steel and Stainless Steel
Country of Origin: CN
Cutting Depth: 3XD
Cutting Direction: Right Hand
Cutting Edge Material: Solid Carbide
Drill Diameter Measurement System: Imperial
Drill Size - Decimal Inch: 0.25 in
Drill Size - Fraction: 1/4 in
Drill Size - Metric: 6.35 mm
Finish: TiAlN, TiAlN Coated
Flute Length: 1.339 in
Flute Type: Spiral
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 3.11 in
Point Angle: 140 deg
Point Type: Self-Centering
Series: SD1103
Shank Size: 0.315 in Dia x 1.417 in L
Shank Type: Cylindrical
Type: Universal
: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
: Seco universal is a multi-purpose general performance solid carbide drill, that can be used in a wide range of materials and applications in all industry segments. Thanks to the design with a strong self centering 140 deg drill point, polished chip flutes and the excellent quality of the drill - high capacity utilization, application security and versatility is provided at a very low cost. With Seco universal stock holding cost can be reduced and greater machining flexibility is offered, leading to reduced set-up time. Seco universal is an alternative to Seco Feedmax in operations when versatility, flexibility and reduced stock holding cost are the main targets.

: Manufacturer Name: Seco Tools
Applicable Materials: Cast Iron, Hard Materials, Steel and Stainless Steel
Country of Origin: CN
Cutting Depth: 3XD
Cutting Direction: Right Hand
Cutting Edge Material: Solid Carbide
Drill Diameter Measurement System: Imperial
Drill Size - Decimal Inch: 0.25 in
Drill Size - Fraction: 1/4 in
Drill Size - Metric: 6.35 mm
Finish: TiAlN, TiAlN Coated
Flute Length: 1.339 in
Flute Type: Spiral
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 3.11 in
Point Angle: 140 deg
Point Type: Self-Centering
Series: SD1103
Shank Size: 0.315 in Dia x 1.417 in L
Shank Type: Cylindrical
Type: Universal
: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
: Seco universal is a multi-purpose general performance solid carbide drill, that can be used in a wide range of materials and applications in all industry segments. Thanks to the design with a strong self centering 140 deg drill point, polished chip flutes and the excellent quality of the drill - high capacity utilization, application security and versatility is provided at a very low cost. With Seco universal stock holding cost can be reduced and greater machining flexibility is offered, leading to reduced set-up time. Seco universal is an alternative to Seco Feedmax in operations when versatility, flexibility and reduced stock holding cost are the main targets.
