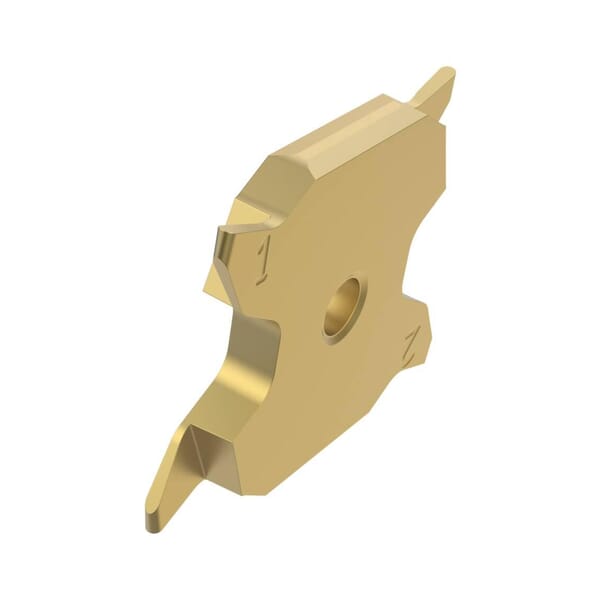

Name: Seco 02902991 Grooving Insert, ANSI Code: X4GK2503M0-0200RN-R CP500, X4GK Insert, 2503 Insert, Right Hand Cutting, 2 mm W Cutting, Manufacturers Grade: CP500, TiAlN/TiN
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_105920
Availability: OutOfStock

Seco Tools

Seco 02902991 Grooving Insert, ANSI Code: X4GK2503M0-0200RN-R CP500, X4GK Insert, 2503 Insert, Right Hand Cutting, 2 mm W Cutting, Manufacturers Grade: CP500, TiAlN/TiN

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02902991 Grooving Insert, ANSI Code: X4GK2503M0-0200RN-R CP500, X4GK Insert, 2503 Insert, Right Hand Cutting, 2 mm W Cutting, Manufacturers Grade: CP500, TiAlN/TiN

ManufacturerSeco

Part #288591848

MFG #02902991

Seco Grooving Insert, X4GK Insert, 2503 Insert, 2 mm Cutting Width, 6.5 mm Maximum Depth of Cut, 0 deg Lead Angle, R Chipbreaker, 1 mm Corner Radius, 20.36 mm Thickness, 25.4 mm Length, Manufacturers Grade: CP500, ANSI Code: X4GK2503M0-0200RN-R CP500, Right Hand Cutting, Carbide, TiAlN/TiN

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: X4GK2503M0-0200RN-R CP500
Chipbreaker: R
Corner Radius: 1 mm
Country of Origin: SE
Cutting Direction: Right Hand
Cutting Width: 2 mm
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Insert Size: 2503
Insert Style: X4GK
Lead Angle: 0 deg
Length: 25.4 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Maximum Depth of Cut: 6.5 mm
Thickness: 20.36 mm
: The Seco X4 system with a 4-cutting edge insert is optimized for parting-off and grooving primarily small parts. It consists of indexable tangential inserts and a highly stable clamp design. These strong, dependable system components achieve high accuracy, repeatability, productivity and surface quality in external grooving and parting-off operations involving small parts and slim bars and tubes made from a wide variety of work materials.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: X4GK2503M0-0200RN-R CP500
Chipbreaker: R
Corner Radius: 1 mm
Country of Origin: SE
Cutting Direction: Right Hand
Cutting Width: 2 mm
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Insert Size: 2503
Insert Style: X4GK
Lead Angle: 0 deg
Length: 25.4 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Maximum Depth of Cut: 6.5 mm
Thickness: 20.36 mm
: The Seco X4 system with a 4-cutting edge insert is optimized for parting-off and grooving primarily small parts. It consists of indexable tangential inserts and a highly stable clamp design. These strong, dependable system components achieve high accuracy, repeatability, productivity and surface quality in external grooving and parting-off operations involving small parts and slim bars and tubes made from a wide variety of work materials.
: Catalog
