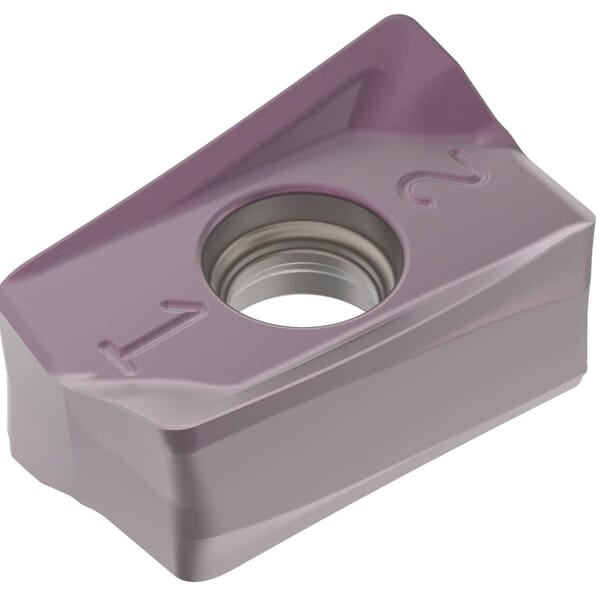

Seco 03290937 Milling Insert, ANSI Code: ZOMX160708TR-M12, ZOMX Insert, 1607 Insert, Carbide, Manufacturers Grade: MK2050, Parallelogram Shape
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSeco 03290937 Milling Insert, ANSI Code: ZOMX160708TR-M12, ZOMX Insert, 1607 Insert, Carbide, Manufacturers Grade: MK2050, Parallelogram Shape
ManufacturerSeco
Part #288590937
MFG #03290937
Seco Milling Insert, ZOMX Insert, 1607 Insert, Parallelogram, 10.76 mm Inscribed Circle, 7.38 mm Thickness, 10.76 mm Width, 15.5 mm Length, M12 Chipbreaker, 0.8 mm Corner Radius, Neutral Rake, 2.9 mm Hole Dia, Manufacturers Grade: MK2050, ANSI Code: ZOMX160708TR-M12, ISO Code: ZOMX160708TR-M12, Right Hand, Carbide, TiAlN/TiSiN, Cast Iron Material Application
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Seco ToolsANSI Code:Â ZOMX160708TR-M12Chipbreaker:Â M12Corner Radius:Â 0.8 mmCountry of Origin:Â SEFinish:Â PVD-TiAlN/TiSiN Coated, TiAlN/TiSiNHand of Insert:Â RightHole Diameter:Â 2.9 mmInscribed Circle:Â 10.76 mmInsert Size:Â 1607Insert Style:Â ZOMXISO Code:Â ZOMX160708TR-M12Length:Â 15.5 mmManufacturer Name:Â Seco ToolsManufacturers Grade:Â MK2050Material:Â CarbideMaterial Application:Â Cast IronRake:Â NeutralShape:Â ParallelogramThickness:Â 7.38 mmWidth:Â 10.76 mm
- PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- The Square shoulder milling insert ZOMX160708TR-M12 MK2050 features a high-accuracy 90-degree angle designed for good surfaces and smooth cutting geometry. It is a double-sided insert with four cutting edges and a clearance angle major of 0 degrees. With a corner radius of 0.8 mm and a wiper edge length of 2 mm, the insert uses a carbide PVD grade suitable for medium applications with an average chip thickness of 0.12 mm. The insert rake angle is 29 degrees, and the cutting geometry type is M12. This insert is primarily intended for cast irons and hard materials, with partial applicability to steel. The design supports cost-effective machining economy through its double-sided feature and versatile use across PMKS material groups. Many customers face challenges in achieving high surface quality and reducing finishing machining operations. The main feature of this insert is its high-accuracy 90-degree angle combined with smooth cutting geometry, which enables good surface finishes and reduces or eliminates finishing steps. The insert is suitable for a variety of workpiece materials when equipped with the appropriate grades. Cutter performance is enhanced by a high helix angle that lowers power consumption and reduces vibrations, allowing a depth of cut capability up to 15 mm (0.59 inch). Benefits include possible elimination of finishing operations, lower power consumption, less vibration, reduced downtime, good accuracy, high surface quality, reduced cost due to four cutting edges on a double-sided insert, and easy insert indexing. The insert provides an economic solution with long tool life. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
- Manufacturer Name:Â Seco ToolsANSI Code:Â ZOMX160708TR-M12Chipbreaker:Â M12Corner Radius:Â 0.8 mmCountry of Origin:Â SEFinish:Â PVD-TiAlN/TiSiN Coated, TiAlN/TiSiNHand of Insert:Â RightHole Diameter:Â 2.9 mmInscribed Circle:Â 10.76 mmInsert Size:Â 1607Insert Style:Â ZOMXISO Code:Â ZOMX160708TR-M12Length:Â 15.5 mmManufacturer Name:Â Seco ToolsManufacturers Grade:Â MK2050Material:Â CarbideMaterial Application:Â Cast IronRake:Â NeutralShape:Â ParallelogramThickness:Â 7.38 mmWidth:Â 10.76 mm
- PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- The Square shoulder milling insert ZOMX160708TR-M12 MK2050 features a high-accuracy 90-degree angle designed for good surfaces and smooth cutting geometry. It is a double-sided insert with four cutting edges and a clearance angle major of 0 degrees. With a corner radius of 0.8 mm and a wiper edge length of 2 mm, the insert uses a carbide PVD grade suitable for medium applications with an average chip thickness of 0.12 mm. The insert rake angle is 29 degrees, and the cutting geometry type is M12. This insert is primarily intended for cast irons and hard materials, with partial applicability to steel. The design supports cost-effective machining economy through its double-sided feature and versatile use across PMKS material groups. Many customers face challenges in achieving high surface quality and reducing finishing machining operations. The main feature of this insert is its high-accuracy 90-degree angle combined with smooth cutting geometry, which enables good surface finishes and reduces or eliminates finishing steps. The insert is suitable for a variety of workpiece materials when equipped with the appropriate grades. Cutter performance is enhanced by a high helix angle that lowers power consumption and reduces vibrations, allowing a depth of cut capability up to 15 mm (0.59 inch). Benefits include possible elimination of finishing operations, lower power consumption, less vibration, reduced downtime, good accuracy, high surface quality, reduced cost due to four cutting edges on a double-sided insert, and easy insert indexing. The insert provides an economic solution with long tool life. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
