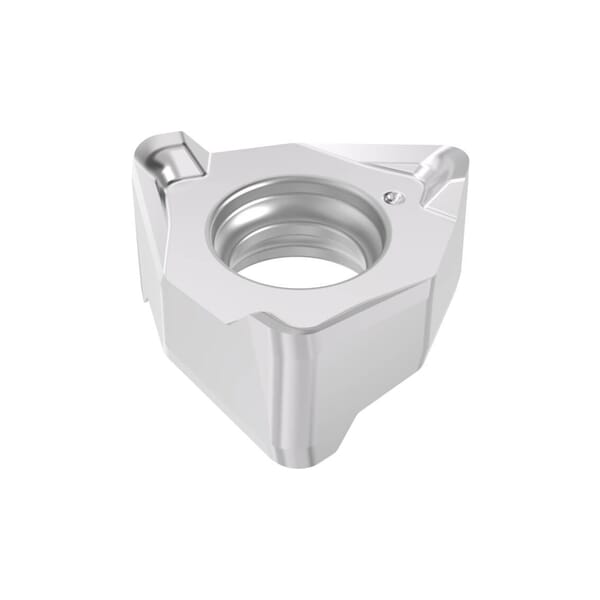

Name: Seco 02899464 Milling Insert, ANSI Code: XNEX040304R-M06 MS2050, XNEX Insert, 040304 Insert, Carbide, Manufacturers Grade: MS2050, Trigon Shape
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_105842
Availability: OutOfStock

Seco Tools

Seco 02899464 Milling Insert, ANSI Code: XNEX040304R-M06 MS2050, XNEX Insert, 040304 Insert, Carbide, Manufacturers Grade: MS2050, Trigon Shape

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02899464 Milling Insert, ANSI Code: XNEX040304R-M06 MS2050, XNEX Insert, 040304 Insert, Carbide, Manufacturers Grade: MS2050, Trigon Shape

ManufacturerSeco

Part #288590176

MFG #02899464

Seco Milling Insert, XNEX Insert, 040304 Insert, Trigon, 6.7 mm Inscribed Circle, 3.3 mm Thickness, 0.264 in Width, M06 Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: MS2050, ANSI Code: XNEX040304R-M06 MS2050, Right Hand, Carbide, TiAlN/NbN, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: XNEX040304R-M06 MS2050
Chipbreaker: M06
Corner Radius: 0.4 mm
Country of Origin: SE
Finish: PVD-TiAlN/NbN Coated, TiAlN/NbN
Hand of Insert: Right
Inscribed Circle: 6.7 mm
Insert Size: 040304
Insert Style: XNEX
Manufacturer Name: Seco Tools
Manufacturers Grade: MS2050
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Rake: Positive
Shape: Trigon
Thickness: 3.3 mm
Width: 0.264 in
: The Square shoulder milling insert XNEX040304R-M06 MS2050 features six cutting edges and a double-sided design. With a corner radius of 0.4 mm and a wiper edge length of 0.8 mm, it is designed for medium applications with an average chip thickness of 0.06 mm. The insert has a clearance angle major of 0 degrees and an insert rake angle of 32 degrees. It is made from a carbide PVD grade suitable for machining stainless steel, superalloys, and titanium, with partial applicability to steel. The cutting geometry type is M06, optimized for the specified application areas. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: XNEX040304R-M06 MS2050
Chipbreaker: M06
Corner Radius: 0.4 mm
Country of Origin: SE
Finish: PVD-TiAlN/NbN Coated, TiAlN/NbN
Hand of Insert: Right
Inscribed Circle: 6.7 mm
Insert Size: 040304
Insert Style: XNEX
Manufacturer Name: Seco Tools
Manufacturers Grade: MS2050
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Rake: Positive
Shape: Trigon
Thickness: 3.3 mm
Width: 0.264 in
: The Square shoulder milling insert XNEX040304R-M06 MS2050 features six cutting edges and a double-sided design. With a corner radius of 0.4 mm and a wiper edge length of 0.8 mm, it is designed for medium applications with an average chip thickness of 0.06 mm. The insert has a clearance angle major of 0 degrees and an insert rake angle of 32 degrees. It is made from a carbide PVD grade suitable for machining stainless steel, superalloys, and titanium, with partial applicability to steel. The cutting geometry type is M06, optimized for the specified application areas. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
