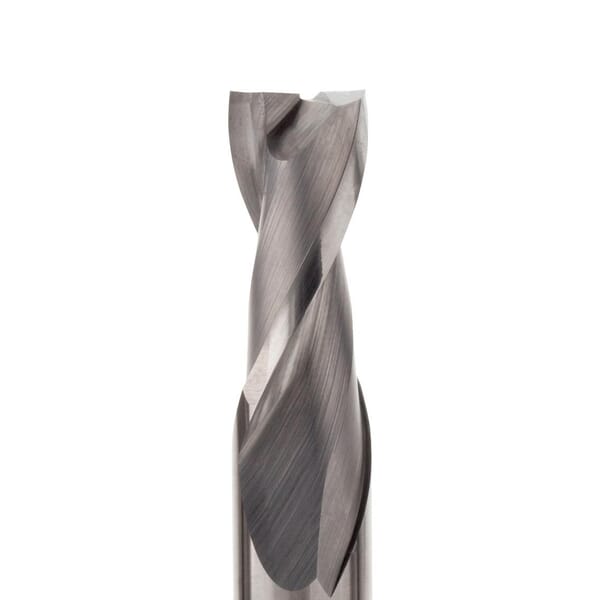

JABRO Solid2 84419 JS412 Center Cutting Regular Length Single End Square End End Mill, 12 mm Dia Cutter, 24 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 88 mm OAL, Uncoated
Your Price
JABRO Solid2 84419 JS412 Center Cutting Regular Length Single End Square End End Mill, 12 mm Dia Cutter, 24 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 88 mm OAL, Uncoated
Your Price
JABRO Solid2 84419 JS412 Center Cutting Regular Length Single End Square End End Mill, 12 mm Dia Cutter, 24 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 88 mm OAL, Uncoated
Description
JABRO Solid2 End Mill, Center Cutting Regular Length Single End Square End, Series: JS412, 12 mm Diameter Cutter, 88 mm Overall Length, 24 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS412120D2SZ2.3, ISO Code: JS412120D2SZ2.3, Solid Carbide, Uncoated
Product Number: 288584419
Manufacturer: JABRO
Price:
MFG #: 02881774
Manufacturer: Seco Tools
Specifications
ANSI Code: JS412120D2SZ2.3
Cutter Diameter: 12 mm
Cutting Direction: Right Hand
Finish: Uncoated
Flute Type: Spiral
Helix Angle: 30 deg
ISO Code: JS412120D2SZ2.3
Length of Cut: 24 mm
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 88 mm
Series: JS412
Shank Diameter: 12 mm
Shank Type: Weldon Flat
Type: Center Cutting Regular Length Single End Square End
Item Features
- JABRO-Solid2 - General machining technology
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 45 mm L minimum clamping
- 30 deg axial rake
- 20 deg radial rake
- D - Cylindrical tool shape
- Uneven pitch
