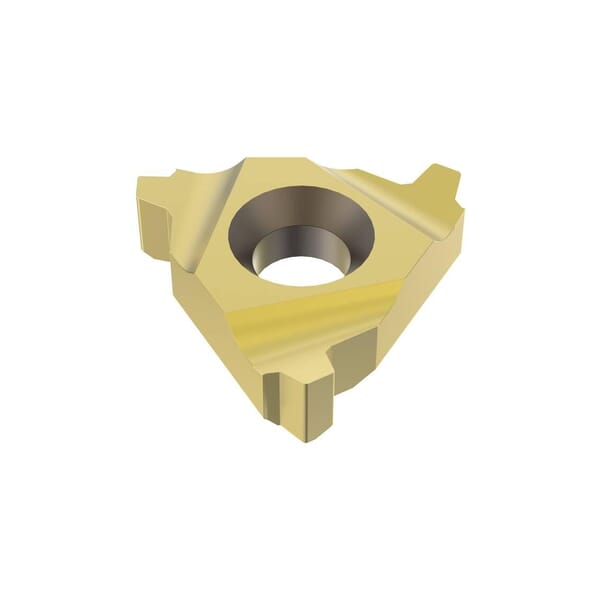

Name: Seco 00072944 Snap-Tap Laydown Threading Insert, ANSI Code: 22NR6STACME CP500, 22NR Insert, 6 TPI, Internal Thread, Stub Acme Thread, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_105086
Availability: OutOfStock

Seco Tools

Seco 00072944 Snap-Tap Laydown Threading Insert, ANSI Code: 22NR6STACME CP500, 22NR Insert, 6 TPI, Internal Thread, Stub Acme Thread, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00072944 Snap-Tap Laydown Threading Insert, ANSI Code: 22NR6STACME CP500, 22NR Insert, 6 TPI, Internal Thread, Stub Acme Thread, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

ManufacturerSeco

Part #288572944

MFG #00072944

Seco Threading Insert, Laydown, Series: Snap-Tap, 22NR Insert, 22 Insert, Internal Thread, Stub Acme Thread Standard, 6 Threads per Inch, 12.7 mm Inscribed Circle, 4.7 mm Thickness, 22 mm Length, ANSI Code: 22NR6STACME CP500, ISO Code: 22NR6STACME CP500, 29 deg Included Angle, Manufacturers Grade: CP500, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 22NR6STACME CP500
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 29 deg
Inscribed Circle: 12.7 mm
Insert Size: 22
Insert Style: 22NR
ISO Code: 22NR6STACME CP500
Length: 22 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Series: Snap-Tap
Thickness: 4.7 mm
Thread Standard: Stub Acme
Thread Type: Internal
Threads per Inch: 6
Type: Laydown
: The Thread turning insert 22NR6STACME CP500 is designed for internal stub-ACME thread forms with a minimum of 6 threads per inch. It features a carbide PVD grade CP500, equipped with one tooth and three cutting edges. The insert is suitable for machining steel, stainless steel, cast irons, superalloys, and titanium, with partial applicability to non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: 22NR6STACME CP500
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 29 deg
Inscribed Circle: 12.7 mm
Insert Size: 22
Insert Style: 22NR
ISO Code: 22NR6STACME CP500
Length: 22 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Series: Snap-Tap
Thickness: 4.7 mm
Thread Standard: Stub Acme
Thread Type: Internal
Threads per Inch: 6
Type: Laydown
: The Thread turning insert 22NR6STACME CP500 is designed for internal stub-ACME thread forms with a minimum of 6 threads per inch. It features a carbide PVD grade CP500, equipped with one tooth and three cutting edges. The insert is suitable for machining steel, stainless steel, cast irons, superalloys, and titanium, with partial applicability to non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
