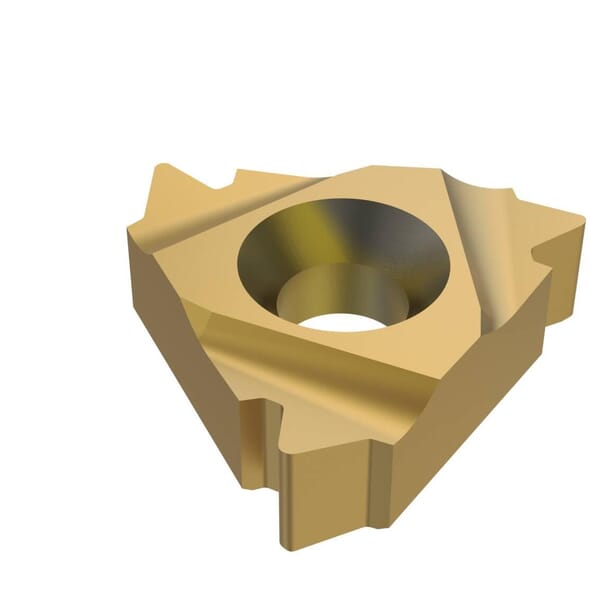

Name: Seco 00064918 Snap-Tap Laydown Threading Insert, ANSI Code: 27ER5API404 CP300, 27ER Insert, 5 TPI, External Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturers Grade: CP300, Material Grade: P
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_104450
Availability: OutOfStock

Seco Tools

Seco 00064918 Snap-Tap Laydown Threading Insert, ANSI Code: 27ER5API404 CP300, 27ER Insert, 5 TPI, External Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturers Grade: CP300, Material Grade: P

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00064918 Snap-Tap Laydown Threading Insert, ANSI Code: 27ER5API404 CP300, 27ER Insert, 5 TPI, External Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturers Grade: CP300, Material Grade: P

ManufacturerSeco

Part #288564918

MFG #00064918

Seco Threading Insert, Laydown, Series: Snap-Tap, 27ER Insert, 27 Insert, External, API Rotary Drilling Connection, 5, 15.9 mm Inscribed Circle, 6.2 mm Thickness, 27 mm Length, ANSI Code: 27ER5API404 CP300, ISO Code: 27ER5API404 CP300, 0.51 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP300, Right Hand Cutting, Carbide, TiAlN/TiN, Material Grade: P

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 27ER5API404 CP300
Corner Radius: 0.51 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Included Angle: 60 deg
Inscribed Circle: 15.9 mm
Insert Size: 27
Insert Style: 27ER
ISO Code: 27ER5API404 CP300
Length: 27 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP300
Material: Carbide
Material Grade: P
Series: Snap-Tap
Thickness: 6.2 mm
Thread Standard: API Rotary Drilling Connection
Thread Type: External
Threads per Inch: 5
Type: Laydown
: The Thread turning insert 27ER5API404 CP300 features an API external thread form type with a minimum of 5 threads per inch. It is made from a carbide PVD grade, specifically CP300. The insert has one tooth and three cutting edges. This insert is designed primarily for use with steel workpiece materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: 27ER5API404 CP300
Corner Radius: 0.51 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Included Angle: 60 deg
Inscribed Circle: 15.9 mm
Insert Size: 27
Insert Style: 27ER
ISO Code: 27ER5API404 CP300
Length: 27 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP300
Material: Carbide
Material Grade: P
Series: Snap-Tap
Thickness: 6.2 mm
Thread Standard: API Rotary Drilling Connection
Thread Type: External
Threads per Inch: 5
Type: Laydown
: The Thread turning insert 27ER5API404 CP300 features an API external thread form type with a minimum of 5 threads per inch. It is made from a carbide PVD grade, specifically CP300. The insert has one tooth and three cutting edges. This insert is designed primarily for use with steel workpiece materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
