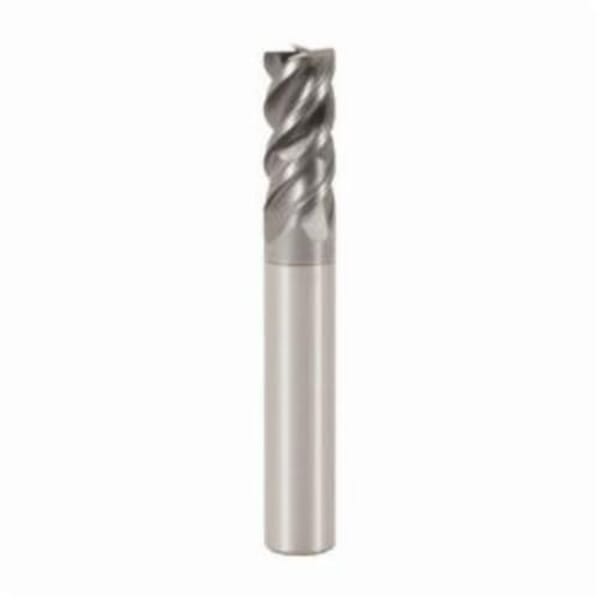

JABRO Solid2 64130 JS554 Non-Center Cutting Single End Square End End Mill, 4 mm Dia Cutter, 10 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 55 mm OAL, SIRON-A/PVD Coated
Your Price
JABRO Solid2 64130 JS554 Non-Center Cutting Single End Square End End Mill, 4 mm Dia Cutter, 10 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 55 mm OAL, SIRON-A/PVD Coated
Your Price
JABRO Solid2 64130 JS554 Non-Center Cutting Single End Square End End Mill, 4 mm Dia Cutter, 10 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 55 mm OAL, SIRON-A/PVD Coated
Description
JABRO Solid2 End Mill, Non-Center Cutting Single End Square End, Series: JS554, 4 mm Diameter Cutter, 55 mm Overall Length, 10 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 48 deg Helix Angle, Weldon Flat Shank, ANSI Code: 554040SZ4.0-SIRON-AW, ISO Code: 554040SZ4.0-SIRON-AW, Solid Carbide, SIRON-A/PVD Coated
Product Number: 288564130
Manufacturer: JABRO
Price:
MFG #: 02733846
Manufacturer: Seco Tools
Specifications
ANSI Code: 554040SZ4.0-SIRON-AW
Cutter Diameter: 4 mm
Cutting Direction: Right Hand
Finish: SIRON-A/PVD Coated
Flute Type: Spiral
Helix Angle: 48 deg
ISO Code: 554040SZ4.0-SIRON-AW
Length of Cut: 10 mm
Material: Solid Carbide
Number of Flutes: 4
Overall Length: 55 mm
Series: JS554
Shank Diameter: 6 mm
Shank Type: Weldon Flat
Type: Non-Center Cutting Single End Square End
Item Features
- JABRO-Solid2 - General machining technology
- Uneven pitch
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Sira, also known as Siron-A, is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life, it is used on a variety of materials including steel, stainless steel and cast iron
- 90 deg cutting edge
- 36 mm L minimum clamping
- 48 deg axial rake
- 8 deg radial rake
- Unequal flute spacing
- F - Step tool shape
