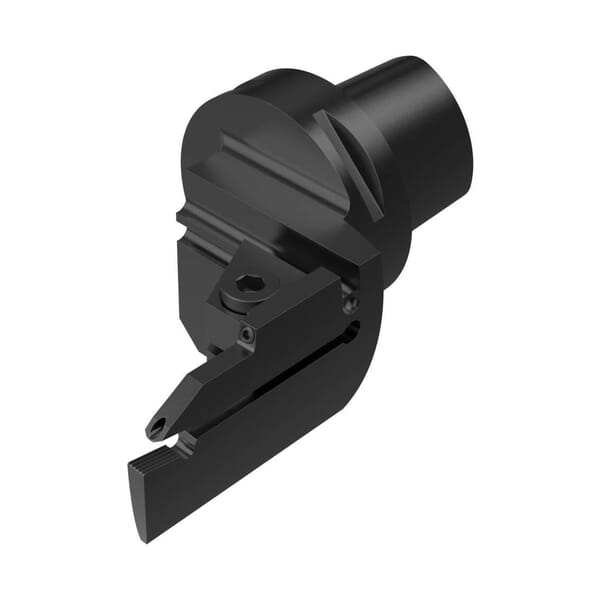

Name: Seco 02718841 Seco-Capto Jetstream Tooling External Multi-Directional Modular Turning Unit Head, C6 System, Right Hand Cutting, 36 mm Max Depth of Cut, 6 mm Max Width of Cut, LCGF/LCGN/LCMF/LCMR Insert, 100 mm L Head/Projection
Brand: Seco Tools
SKU: SECO_Q2_2018_009608
Availability: OutOfStock

Seco Tools

Seco 02718841 Seco-Capto Jetstream Tooling External Multi-Directional Modular Turning Unit Head, C6 System, Right Hand Cutting, 36 mm Max Depth of Cut, 6 mm Max Width of Cut, LCGF/LCGN/LCMF/LCMR Insert, 100 mm L Head/Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02718841 Seco-Capto Jetstream Tooling External Multi-Directional Modular Turning Unit Head, C6 System, Right Hand Cutting, 36 mm Max Depth of Cut, 6 mm Max Width of Cut, LCGF/LCGN/LCMF/LCMR Insert, 100 mm L Head/Projection

ManufacturerSeco

Part #288561897

MFG #02718841

Seco Modular Turning Unit Head, External Multi-Directional, Series: Seco-Capto Jetstream Tooling, 100 mm Head Length/Projection, System Size: C6, 36 mm Maximum Depth of Cut, 6 mm Maximum Width of Cut, 230 mm Diameter Maximum Workpiece, LCGF/LCGN/LCMF/LCMR Insert, Insert Compatibility: LC..1606.., Right Hand Cutting Direction, 45 mm Center to Cutting Edge, Secoloc Clamp Insert Holding Method

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Center to Cutting Edge: 45 mm
Country of Origin: IN
Cutting Direction: Right Hand
Head Length/Projection: 100 mm
Insert Compatibility: LC..1606..
Insert Holding Method: Secoloc Clamp
Insert Style: LCGF/LCGN/LCMF/LCMR
Manufacturer Name: Seco Tools
Maximum Depth of Cut: 36 mm
Maximum Width of Cut: 6 mm
Maximum Workpiece Diameter: 230 mm
Series: Seco-Capto Jetstream Tooling
System Size: C6
Type: External Multi-Directional
: TCEI0815 Clamp Screw and 6SMS795 Clamp Key
: TCEI0815 Clamp Screw and 6SMS795 Clamp Key
: The Seco MDT (multi-directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off and threading. The unique Secoloc clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability.
: Catalog

: Manufacturer Name: Seco Tools
Center to Cutting Edge: 45 mm
Country of Origin: IN
Cutting Direction: Right Hand
Head Length/Projection: 100 mm
Insert Compatibility: LC..1606..
Insert Holding Method: Secoloc Clamp
Insert Style: LCGF/LCGN/LCMF/LCMR
Manufacturer Name: Seco Tools
Maximum Depth of Cut: 36 mm
Maximum Width of Cut: 6 mm
Maximum Workpiece Diameter: 230 mm
Series: Seco-Capto Jetstream Tooling
System Size: C6
Type: External Multi-Directional
: TCEI0815 Clamp Screw and 6SMS795 Clamp Key
: TCEI0815 Clamp Screw and 6SMS795 Clamp Key
: The Seco MDT (multi-directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off and threading. The unique Secoloc clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability.
: Catalog
