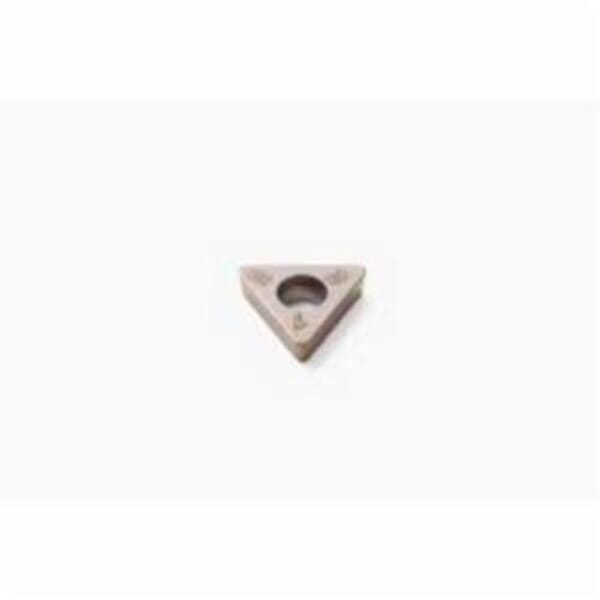

Name: Seco Secomax 03029033 Turning Insert, ANSI Code: TCGW21.52S-00625-L1-C CH2540, TCGW Insert, Material Grade: H, 110208 Insert, Triangular Shape, 11 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CH2540
Brand: Seco Tools
SKU: Seco_034238
Availability: OutOfStock

Seco Tools

Seco Secomax 03029033 Turning Insert, ANSI Code: TCGW21.52S-00625-L1-C CH2540, TCGW Insert, Material Grade: H, 110208 Insert, Triangular Shape, 11 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CH2540

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Secomax 03029033 Turning Insert, ANSI Code: TCGW21.52S-00625-L1-C CH2540, TCGW Insert, Material Grade: H, 110208 Insert, Triangular Shape, 11 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CH2540

ManufacturerSeco

Part #288556576

MFG #03029033

Seco Secomax Turning Insert, TCGW Insert, 110208 Insert, Triangular, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 mm Length, 11 Seat, L1 Chipbreaker, 0.8 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: CH2540, ANSI Code: TCGW21.52S-00625-L1-C CH2540, ISO Code: TCGW110208S-01525-L1-C CH2540, 60 deg Included Angle, 7 deg Relief Angle, PCBN, TiSiN, Material Grade: H, For Use On: Hard Materials

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TCGW21.52S-00625-L1-C CH2540
Chipbreaker: L1
Corner Radius: 0.8 mm
Country of Origin: SE
Finish: PVD-TiSiN Coated, TiSiN
For Use On: Hard Materials
Hole Diameter: 2.8 mm
Included Angle: 60 deg
Inscribed Circle: 6.35 mm
Insert Size: 110208
Insert Style: TCGW
ISO Code: TCGW110208S-01525-L1-C CH2540
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CH2540
Material: PCBN
Material Grade: H
Maximum Depth of Cut: 2.75 mm
Relief Angle: 7 deg
Seat Size: 11
Shape: Triangular
Thickness: 2.38 mm
: Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.

: Manufacturer Name: Seco Tools
ANSI Code: TCGW21.52S-00625-L1-C CH2540
Chipbreaker: L1
Corner Radius: 0.8 mm
Country of Origin: SE
Finish: PVD-TiSiN Coated, TiSiN
For Use On: Hard Materials
Hole Diameter: 2.8 mm
Included Angle: 60 deg
Inscribed Circle: 6.35 mm
Insert Size: 110208
Insert Style: TCGW
ISO Code: TCGW110208S-01525-L1-C CH2540
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CH2540
Material: PCBN
Material Grade: H
Maximum Depth of Cut: 2.75 mm
Relief Angle: 7 deg
Seat Size: 11
Shape: Triangular
Thickness: 2.38 mm
: Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
