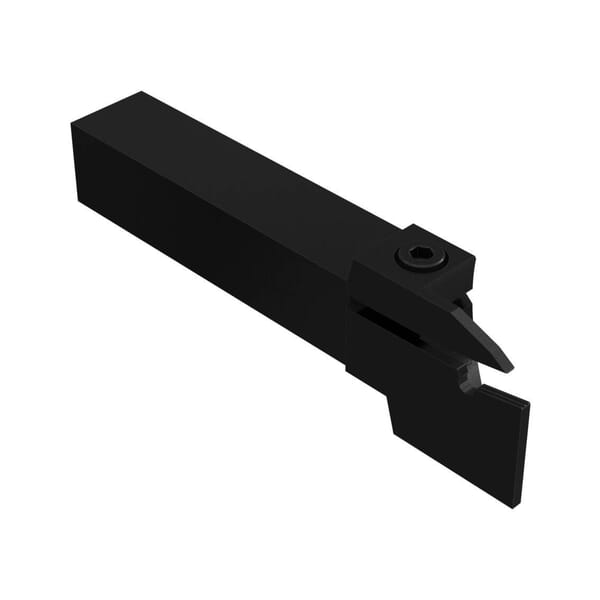

Seco 00054059 MDT Indexable Turning Tool Holder CFT

ManufacturerSeco

Part #288554059

MFG #00054059

Seco Indexable Turning Tool Holder, Series: MDT, CFT Tool Holder, 125 mm Overall Length, Square Shank, 20 mm Shank, Insert Compatibility: LC..1603.., 3 mm Insert Seat, Left Hand Cutting, 21.5 mm Back of Bar to Cutting Edge, 90 deg Lead Angle, 43 mm Head Length, ANSI Code: CFTL2020K03, ISO Code: CFTL2020K03, Steel

$239.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CFTL2020K03
Back of Bar to Cutting Edge: 21.5 mm
Country of Origin: IN
Cutting Direction: Left Hand
Head Length: 43 mm
Insert Compatibility: LC..1603..
Insert Seat Size: 3 mm
ISO Code: CFTL2020K03
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Overall Length: 125 mm
Series: MDT
Shank Size: 20 mm
Shank Type: Square
Tool Holder Style: CFT
: The highly stable and reliable Seco MDT (Multi-Directional turning) system consists of holders and inserts that offers excellent performance in thread turning operations. Products are available for both external and internal threads. Its unique clamping method is a combination of V-shaped top clamp and serrated contact surfaces between the underside of the insert and tool holder, resulting in superb stability.

: Manufacturer Name: Seco Tools
ANSI Code: CFTL2020K03
Back of Bar to Cutting Edge: 21.5 mm
Country of Origin: IN
Cutting Direction: Left Hand
Head Length: 43 mm
Insert Compatibility: LC..1603..
Insert Seat Size: 3 mm
ISO Code: CFTL2020K03
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Overall Length: 125 mm
Series: MDT
Shank Size: 20 mm
Shank Type: Square
Tool Holder Style: CFT
: The highly stable and reliable Seco MDT (Multi-Directional turning) system consists of holders and inserts that offers excellent performance in thread turning operations. Products are available for both external and internal threads. Its unique clamping method is a combination of V-shaped top clamp and serrated contact surfaces between the underside of the insert and tool holder, resulting in superb stability.
