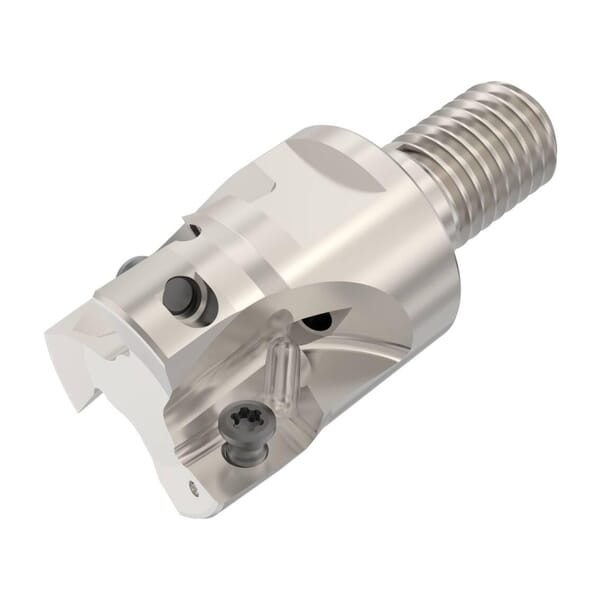

Seco 02676833 Turbo 12 Single Sided Insert Indexable Shoulder Mill, ANSI Code: R217.69-1225.RE-12-3AN, 25 mm Dia Cutting, Combimaster Shank, Right Hand Cutting, 90 deg Lead Angle, 11 mm Max Depth of Cut
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSeco 02676833 Turbo 12 Single Sided Insert Indexable Shoulder Mill, ANSI Code: R217.69-1225.RE-12-3AN, 25 mm Dia Cutting, Combimaster Shank, Right Hand Cutting, 90 deg Lead Angle, 11 mm Max Depth of Cut
ManufacturerSeco
Part #288551208
MFG #02676833
Seco Indexable Shoulder Mill, Single Sided Insert, Series: Turbo 12, 25 mm Cutting Dia, 30 mm Overall Length, 11 mm Maximum Depth of Cut, 3 Inserts, Insert Compatibility: XO.X12.., 23 mm Shank Dia, Combimaster Shank, Right Hand Cutting, ANSI Code: R217.69-1225.RE-12-3AN, ISO Code: R217.69-1225.RE-12-3AN, 90 deg Lead Angle, Yes, Steel
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Seco ToolsANSI Code:Â R217.69-1225.RE-12-3ANCountry of Origin:Â INCutting Diameter:Â 25 mmCutting Direction:Â Right HandFinish:Â CoatedInsert Compatibility:Â XO.X12..ISO Code:Â R217.69-1225.RE-12-3ANLead Angle:Â 90 degManufacturer Name:Â Seco ToolsMaterial:Â SteelMaximum Depth of Cut:Â 11 mmNumber of Inserts:Â 3Overall Length:Â 30 mmSeries:Â Turbo 12Shank Diameter:Â 23 mmShank Type:Â Combimaster, Combimaster/C-LockedThrough Coolant (Yes/No):Â YesType:Â Single Sided Insert
- The Turbo family takes square shoulder milling to the max. Suitable for most roughing, semi-finishing and finishing operations, these highly versatile cutters offer long tool life and high precision via optimized properties that reduce heat generation and cutting forces. The tools feature a coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials. Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body. Turbo cutters have precision milled pocket seats that improve run out, stability and tool life by providing optimal contact between the tool body and insert. Integrated through coolant channels support high productivity and promote excellent chip evacuation. The comprehensive range of inserts, carbide grades and corner radii available for use with Turbo cutters further increase their adaptability, accuracy and reliability. Inserts can be set to a true 90 deg cutting angle to create clean 90 deg walls and eliminate secondary operations. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. Such versatility also makes it possible for Turbo cutters to excel in slotting, ramping, facing, pocketing, plunging and turn milling operations.
- Manufacturer Name:Â Seco ToolsANSI Code:Â R217.69-1225.RE-12-3ANCountry of Origin:Â INCutting Diameter:Â 25 mmCutting Direction:Â Right HandFinish:Â CoatedInsert Compatibility:Â XO.X12..ISO Code:Â R217.69-1225.RE-12-3ANLead Angle:Â 90 degManufacturer Name:Â Seco ToolsMaterial:Â SteelMaximum Depth of Cut:Â 11 mmNumber of Inserts:Â 3Overall Length:Â 30 mmSeries:Â Turbo 12Shank Diameter:Â 23 mmShank Type:Â Combimaster, Combimaster/C-LockedThrough Coolant (Yes/No):Â YesType:Â Single Sided Insert
- The Turbo family takes square shoulder milling to the max. Suitable for most roughing, semi-finishing and finishing operations, these highly versatile cutters offer long tool life and high precision via optimized properties that reduce heat generation and cutting forces. The tools feature a coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials. Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body. Turbo cutters have precision milled pocket seats that improve run out, stability and tool life by providing optimal contact between the tool body and insert. Integrated through coolant channels support high productivity and promote excellent chip evacuation. The comprehensive range of inserts, carbide grades and corner radii available for use with Turbo cutters further increase their adaptability, accuracy and reliability. Inserts can be set to a true 90 deg cutting angle to create clean 90 deg walls and eliminate secondary operations. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. Such versatility also makes it possible for Turbo cutters to excel in slotting, ramping, facing, pocketing, plunging and turn milling operations.
