Seco JABRO Solid2 03067783 Solid2 JS730 Ball Nose High Performance Machining Single End Square End Mill, 20 mm Dia Cutter, 62 mm Length of Cut, 6 Flutes, 20 mm Dia Shank, 121 mm OAL, HXT/PVD Coated

ManufacturerSeco

Part #288547147

MFG #03067783

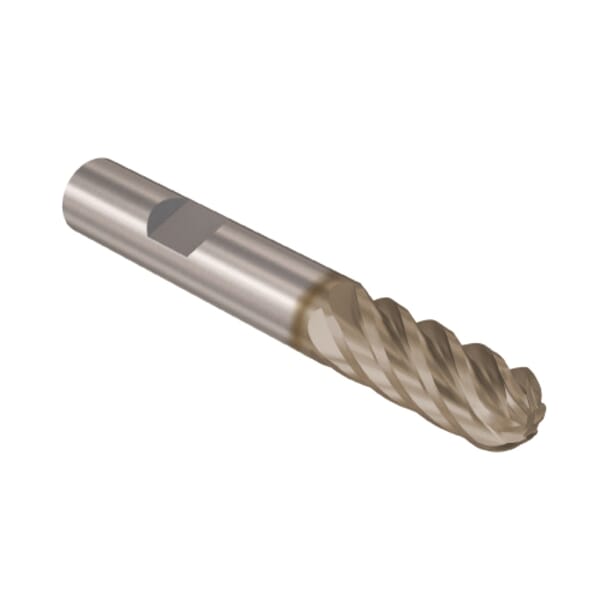

Seco JABRO Solid2 End Mill, Ball Nose High Performance Machining Single End Square End, Series: Solid2 JS730, 20 mm Diameter Cutter, 121 mm Overall Length, 62 mm Length of Cut, 6 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS730200D3B.3Z6-HXT, Micrograin Solid Carbide, HXT/PVD Coated

$658.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: JS730200D3B.3Z6-HXT

Country of Origin: NL

Cutter Diameter: 20 mm

Cutting Direction: Right Hand

Finish: HXT/PVD Coated

Flute Type: Spiral

Helix Angle: 38 deg

Length of Cut: 62 mm

Manufacturer Name: Seco Tools

Material: Micrograin Solid Carbide

Number of Flutes: 6

Overall Length: 121 mm

Series: Solid2 JS730

Shank Diameter: 20 mm

Shank Type: Weldon Flat

Type: Ball Nose High Performance Machining Single End Square End

Differential pitch, radial relief

Seco offers a complete range of high performance solid carbide square shoulder end mills, ball nose cutters and finish end mills for high productivity and extended tool life. This range covers universal products and optimized end mills for specific workpiece materials. Universal products offer full machining flexibility at an excellent price/performance ratio. Optimized end mills are dedicated for original equipment manufacturers and first-tier suppliers where large batches of a single component have to be machined and where processes need to be fully optimized to reduce cycle times, reducing costs per part.

Catalog

Video Link

Manufacturer Name: Seco Tools

ANSI Code: JS730200D3B.3Z6-HXT

Country of Origin: NL

Cutter Diameter: 20 mm

Cutting Direction: Right Hand

Finish: HXT/PVD Coated

Flute Type: Spiral

Helix Angle: 38 deg

Length of Cut: 62 mm

Manufacturer Name: Seco Tools

Material: Micrograin Solid Carbide

Number of Flutes: 6

Overall Length: 121 mm

Series: Solid2 JS730

Shank Diameter: 20 mm

Shank Type: Weldon Flat

Type: Ball Nose High Performance Machining Single End Square End

Differential pitch, radial relief

Seco offers a complete range of high performance solid carbide square shoulder end mills, ball nose cutters and finish end mills for high productivity and extended tool life. This range covers universal products and optimized end mills for specific workpiece materials. Universal products offer full machining flexibility at an excellent price/performance ratio. Optimized end mills are dedicated for original equipment manufacturers and first-tier suppliers where large batches of a single component have to be machined and where processes need to be fully optimized to reduce cycle times, reducing costs per part.
