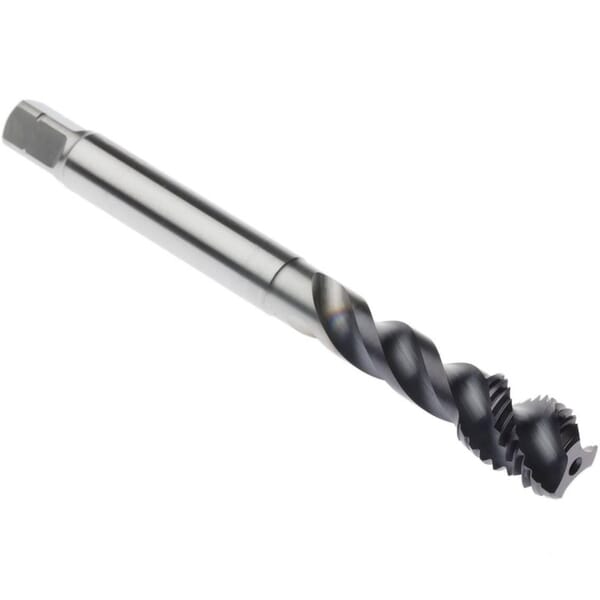

Name: Seco 03000068 Threadmaster MTH-P011 Spiral Flute Tap, Right Hand Cutting, M30x1.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, AlTiN Coated, Powdered Metal
Brand: Seco Tools
SKU: SECO_TOOLS_Q1_18_003901
Availability: OutOfStock

Seco Tools

Seco 03000068 Threadmaster MTH-P011 Spiral Flute Tap, Right Hand Cutting, M30x1.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, AlTiN Coated, Powdered Metal

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 03000068 Threadmaster MTH-P011 Spiral Flute Tap, Right Hand Cutting, M30x1.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, AlTiN Coated, Powdered Metal

ManufacturerSeco

Part #288542609

MFG #03000068

Seco Spiral Flute Tap, Series: Threadmaster MTH-P011, Measurement System: Metric, Fine Thread Standard, M30x1.5 Thread, Modified Bottoming Chamfer, 4 Flutes, Powdered Metal, AlTiN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 20 mm Thread Length, 150 mm Overall Length, 22 mm Shank Diameter, Right Hand Flute Direction, H6 Thread Limit, Steel Material Application, No Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: AlTiN Coated

Flute Direction: Right Hand

Manufacturer Name: Seco Tools

Material: Powdered Metal

Material Application: Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 150 mm

Series: Threadmaster MTH-P011

Shank Diameter: 22 mm

Thread Length: 20 mm

Thread Limit: H6

Thread Size: M30x1.5

Thread Standard: Fine

Through Coolant (Yes/No): No

Optimized threading operations
Versatility of combined processes
Reduced tooling inventory and cost
Superior thread surfaces
High efficiency chip evacuation
Longer tool life

DIN 374

The Threading tap MTH-M30X1.50ISO6HX-BC-P011 features a thread diameter size of MF30X1.5 with a thread tolerance class of 6HX. It conforms to the DIN374 basic standard group and has a threading chamfer type C. The cutting geometry is spiral with a flute helix angle of 48 degrees. This tap is designed specifically for threading applications in steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Catalog

Manufacturer Name: Seco Tools

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: AlTiN Coated

Flute Direction: Right Hand

Manufacturer Name: Seco Tools

Material: Powdered Metal

Material Application: Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 150 mm

Series: Threadmaster MTH-P011

Shank Diameter: 22 mm

Thread Length: 20 mm

Thread Limit: H6

Thread Size: M30x1.5

Thread Standard: Fine

Through Coolant (Yes/No): No

Optimized threading operations
Versatility of combined processes
Reduced tooling inventory and cost
Superior thread surfaces
High efficiency chip evacuation
Longer tool life

DIN 374

The Threading tap MTH-M30X1.50ISO6HX-BC-P011 features a thread diameter size of MF30X1.5 with a thread tolerance class of 6HX. It conforms to the DIN374 basic standard group and has a threading chamfer type C. The cutting geometry is spiral with a flute helix angle of 48 degrees. This tap is designed specifically for threading applications in steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
