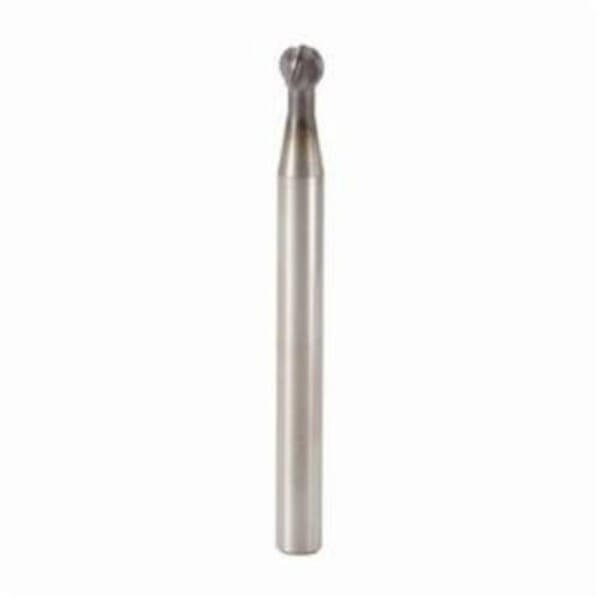

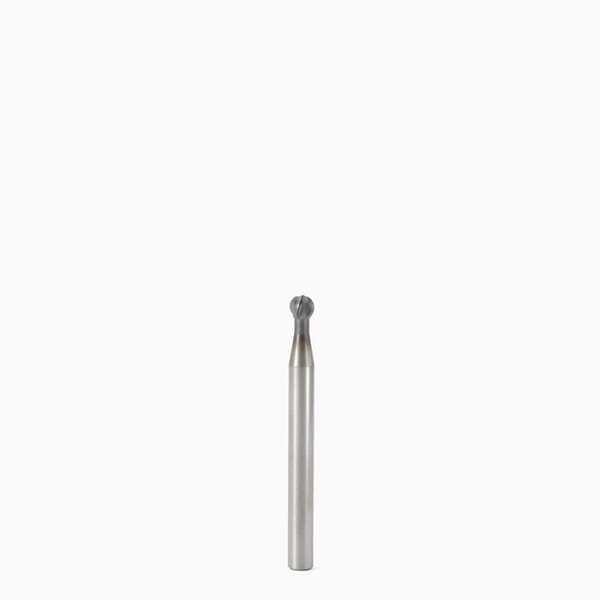

JABRO HSM/Tornado 10353 JH160 Ball End Single End End Mill, 10 mm Dia Cutter, 7.8 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 100 mm OAL, MEGA-64/PVD Coated
Manufacturer: JABRO
MFG #: 00040370
JABRO HSM/Tornado 10353 JH160 Ball End Single End End Mill, 10 mm Dia Cutter, 7.8 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 100 mm OAL, MEGA-64/PVD Coated

Your Price

$277.00 / EA
Pack1/PK
Available for Purchase
Available for Purchase
JABRO HSM/Tornado 10353 JH160 Ball End Single End End Mill, 10 mm Dia Cutter, 7.8 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 100 mm OAL, MEGA-64/PVD Coated
Manufacturer: JABRO
MFG #: 00040370

Your Price

$277.00 / EA
Pack1/PK

Details

Part#288540370

Manufacturer:Seco Tools

MFG #00040370

JABRO HSM/Tornado End Mill, Ball End Single End, Series: JH160, 10 mm Diameter Cutter, 100 mm Overall Length, 7.8 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 15 deg Helix Angle, Cylindrical Shank, ANSI Code: 160100-MEGA-64, ISO Code: 160100-MEGA-64, Solid Carbide, MEGA-64/PVD Coated

Specifications

ANSI Code
160100-MEGA-64
Cutter Diameter
10 mm
Cutting Direction
Right Hand
Finish
MEGA-64/PVD Coated
Flute Type
Spiral
Helix Angle
15 deg
ISO Code
160100-MEGA-64
Length of Cut
7.8 mm
Material
Solid Carbide
Number of Flutes
4
Overall Length
100 mm
Series
JH160
Shank Diameter
10 mm
Shank Type
Cylindrical
Type
Ball End Single End

Item Features

  • JABRO-HSM/Tornado - High speed machining technology
  • 6 mm Dia neck
  • E - Neck tool shape
  • 2 teeth across centre cut
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • MEGA-64 is harder than MEGA-T and provides a higher metal removal rate, it is commonly used on hardened steels
  • 90 deg cutting edge
  • 5 mm corner radius
  • 1.574 in L minimum clamping
  • 15 deg axial rake
  • 4 deg radial rake
  • 15.6 mm L reach
288540370

JABRO HSM/Tornado 10353 JH160 Ball End Single End End Mill, 10 mm Dia Cutter, 7.8 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 100 mm OAL, MEGA-64/PVD Coated

Description


JABRO HSM/Tornado End Mill, Ball End Single End, Series: JH160, 10 mm Diameter Cutter, 100 mm Overall Length, 7.8 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 15 deg Helix Angle, Cylindrical Shank, ANSI Code: 160100-MEGA-64, ISO Code: 160100-MEGA-64, Solid Carbide, MEGA-64/PVD Coated

Product Number: 288540370

Manufacturer: JABRO

Price:

$277.00 / EA
Pack1/PK

MFG #: 00040370

Manufacturer: Seco Tools

Specifications

ANSI Code: 160100-MEGA-64

Cutter Diameter: 10 mm

Cutting Direction: Right Hand

Finish: MEGA-64/PVD Coated

Flute Type: Spiral

Helix Angle: 15 deg

ISO Code: 160100-MEGA-64

Length of Cut: 7.8 mm

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 100 mm

Series: JH160

Shank Diameter: 10 mm

Shank Type: Cylindrical

Type: Ball End Single End

Item Features

  • JABRO-HSM/Tornado - High speed machining technology
  • 6 mm Dia neck
  • E - Neck tool shape
  • 2 teeth across centre cut
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • MEGA-64 is harder than MEGA-T and provides a higher metal removal rate, it is commonly used on hardened steels
  • 90 deg cutting edge
  • 5 mm corner radius
  • 1.574 in L minimum clamping
  • 15 deg axial rake
  • 4 deg radial rake
  • 15.6 mm L reach
