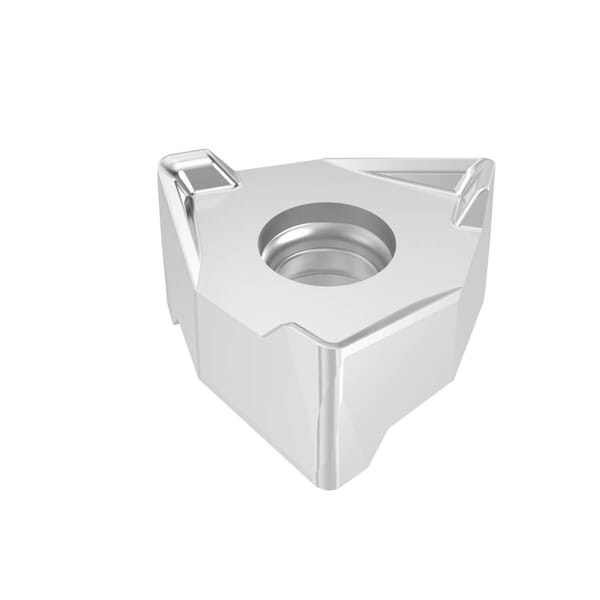

Seco 03272907 XNEX Threaded Mill Insert, XNEX Insert, 080608 Insert, Carbide, Manufacturers Grade: MP2501, Fine Grain Material Grade
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSeco 03272907 XNEX Threaded Mill Insert, XNEX Insert, 080608 Insert, Carbide, Manufacturers Grade: MP2501, Fine Grain Material Grade
ManufacturerSeco
Part #288539999
MFG #39999
Seco, 03272907, Mill Insert, Threaded, Series: XNEX, XNEX Insert, 080608 Insert, 12.48 mm Inscribed Circle, 0.251 in Thickness, 0.3 in Width, 0.3 in Length, 0.8 mm Corner Radius, Manufacturers Grade: MP2501, Right Hand of Insert, Carbide, Material Grade: Fine Grain
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Seco ToolsCorner Radius:Â 0.8 mmCountry of Origin:Â SEHand of Insert:Â RightInscribed Circle:Â 12.48 mmInsert Size:Â 080608Insert Style:Â XNEXLength:Â 0.3 inManufacturer Name:Â Seco ToolsManufacturers Grade:Â MP2501Material:Â CarbideMaterial Grade:Â Fine GrainSeries:Â XNEXThickness:Â 0.251 inType:Â ThreadedWidth:Â 0.3 in
- CVD-coated grade based on Duratomic coating, First choice in steel for maximizing manufacturing output under most varying productivity
- Alternative choice stainless steel applications under stable condition
- PROP65
- The Square shoulder milling insert XNEX080608TR-ME09 MP2501 features six cutting edges with a clearance angle of 0 degrees. It is a double-sided insert with a corner radius of 0.8 mm and a wiper edge length of 1.4 mm. The insert is made from Carbide CVD grade MP2501 and has a cutting geometry type ME09, designed for medium-easy applications with an average chip thickness of 0.09 mm. The insert rake angle is 27 degrees. This insert is primarily intended for steel and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
- Manufacturer Name:Â Seco ToolsCorner Radius:Â 0.8 mmCountry of Origin:Â SEHand of Insert:Â RightInscribed Circle:Â 12.48 mmInsert Size:Â 080608Insert Style:Â XNEXLength:Â 0.3 inManufacturer Name:Â Seco ToolsManufacturers Grade:Â MP2501Material:Â CarbideMaterial Grade:Â Fine GrainSeries:Â XNEXThickness:Â 0.251 inType:Â ThreadedWidth:Â 0.3 in
- CVD-coated grade based on Duratomic coating, First choice in steel for maximizing manufacturing output under most varying productivity
- Alternative choice stainless steel applications under stable condition
- PROP65
- The Square shoulder milling insert XNEX080608TR-ME09 MP2501 features six cutting edges with a clearance angle of 0 degrees. It is a double-sided insert with a corner radius of 0.8 mm and a wiper edge length of 1.4 mm. The insert is made from Carbide CVD grade MP2501 and has a cutting geometry type ME09, designed for medium-easy applications with an average chip thickness of 0.09 mm. The insert rake angle is 27 degrees. This insert is primarily intended for steel and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
