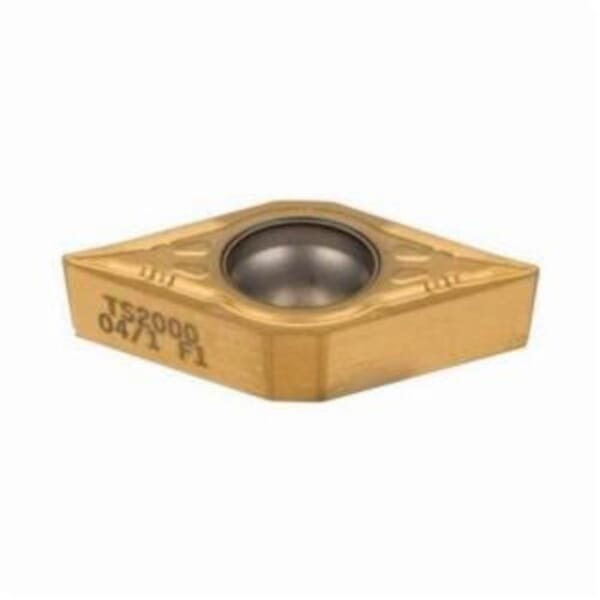

Name: Seco 02615881 Turning Insert, ANSI Code: DCMT32.51-F1 TS2000, DCMT Insert, Material Grade: M, S, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: TS2000
Brand: Seco Tools
SKU: Seco_028982
Availability: OutOfStock

Seco Tools

Seco 02615881 Turning Insert, ANSI Code: DCMT32.51-F1 TS2000, DCMT Insert, Material Grade: M, S, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: TS2000

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02615881 Turning Insert, ANSI Code: DCMT32.51-F1 TS2000, DCMT Insert, Material Grade: M, S, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: TS2000

ManufacturerSeco

Part #288538951

MFG #02615881

Seco Turning Insert, DCMT Insert, 11T304 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TS2000, ANSI Code: DCMT32.51-F1 TS2000, ISO Code: DCMT11T304-F1 TS2000, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, TiAlN/TiN, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: DCMT32.51-F1 TS2000
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 55 deg
Inscribed Circle: 9.5 mm
Insert Size: 11T304
Insert Style: DCMT
ISO Code: DCMT11T304-F1 TS2000
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2000
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 11
Shape: Diamond
Thickness: 3.97 mm
: The Turning insert DCMT11T304-F1 TS2000 features a positive type geometry with a clearance angle major of 7 degrees. It is made from a carbide PVD grade TS2000. The insert has two cutting edges and a corner radius of 0.4 mm. With a cutting edge effective length of 11.3 mm, the insert is designed with a neutral hand orientation. It is suitable for machining superalloys and titanium as primary application areas, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: DCMT32.51-F1 TS2000
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 55 deg
Inscribed Circle: 9.5 mm
Insert Size: 11T304
Insert Style: DCMT
ISO Code: DCMT11T304-F1 TS2000
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2000
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 11
Shape: Diamond
Thickness: 3.97 mm
: The Turning insert DCMT11T304-F1 TS2000 features a positive type geometry with a clearance angle major of 7 degrees. It is made from a carbide PVD grade TS2000. The insert has two cutting edges and a corner radius of 0.4 mm. With a cutting edge effective length of 11.3 mm, the insert is designed with a neutral hand orientation. It is suitable for machining superalloys and titanium as primary application areas, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
