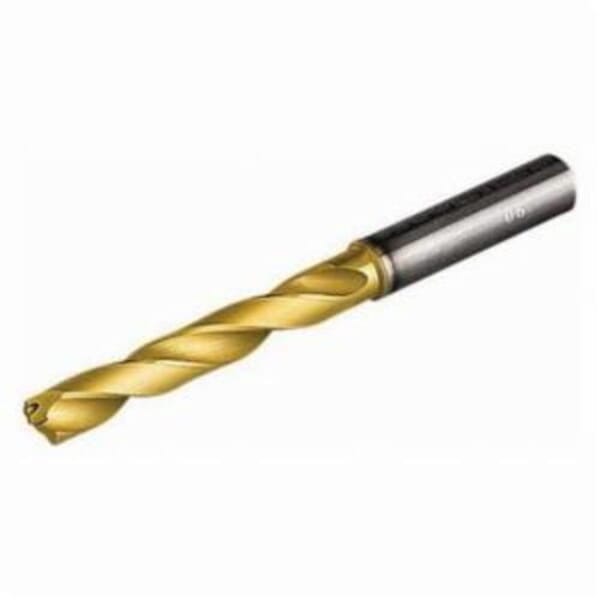

Seco Feedmax 02556426 SD205A-M Single Diameter Shank Drill, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, PVD-TiN+TiAlN Coated

ManufacturerSeco

Part #288538425

MFG #02556426

Seco Feedmax Shank Drill, Single Diameter, Series: SD205A-M, Metric, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 66 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 26 mm Flute Length, 6 mm Dia x 36 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Yes Through Coolant, Solid Carbide, PVD-TiN+TiAlN Coated, Applicable Materials: Super Alloy

$193.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: Super Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.1181 in

Drill Size - Metric: 3 mm

Finish: PVD-TiN+TiAlN Coated

Flute Length: 26 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD205A-M

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Type: Single Diameter

Seco Feedmax is designed for high productivity and low cost per hole with high feeds up to 0,70 mm/rev and high cutting speeds up to 220 m/min
With excellent centering capabilities - high hole quality is achieved with no need for center drilling operations
Thanks to the modern coating with high hot hardness, the strong cutting edges with protective corner chamfers, high strength carbide rod, excellent chip evacuation capabilities and a superb cutting edge quality - a long and predictable tool life is achieved
Seco Feedmax has a wide range of optimized geometries for different materials and applications, to obtain a good quality hole at the lowest cost
High feeds and cutting speeds
Close tolerance holes

DIN 6537A

Seco Feedmax solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool. The self-centering geometry provides high hole quality with no need for center drilling operations. A special TiAlN coating gives Seco Feedmax drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life. Seco Feedmax drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation. A protective corner chamfer further enhances application security.

Manufacturer Name: Seco Tools

Applicable Materials: Super Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.1181 in

Drill Size - Metric: 3 mm

Finish: PVD-TiN+TiAlN Coated

Flute Length: 26 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD205A-M

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Type: Single Diameter

Seco Feedmax is designed for high productivity and low cost per hole with high feeds up to 0,70 mm/rev and high cutting speeds up to 220 m/min
With excellent centering capabilities - high hole quality is achieved with no need for center drilling operations
Thanks to the modern coating with high hot hardness, the strong cutting edges with protective corner chamfers, high strength carbide rod, excellent chip evacuation capabilities and a superb cutting edge quality - a long and predictable tool life is achieved
Seco Feedmax has a wide range of optimized geometries for different materials and applications, to obtain a good quality hole at the lowest cost
High feeds and cutting speeds
Close tolerance holes

DIN 6537A

Seco Feedmax solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool. The self-centering geometry provides high hole quality with no need for center drilling operations. A special TiAlN coating gives Seco Feedmax drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life. Seco Feedmax drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation. A protective corner chamfer further enhances application security.
