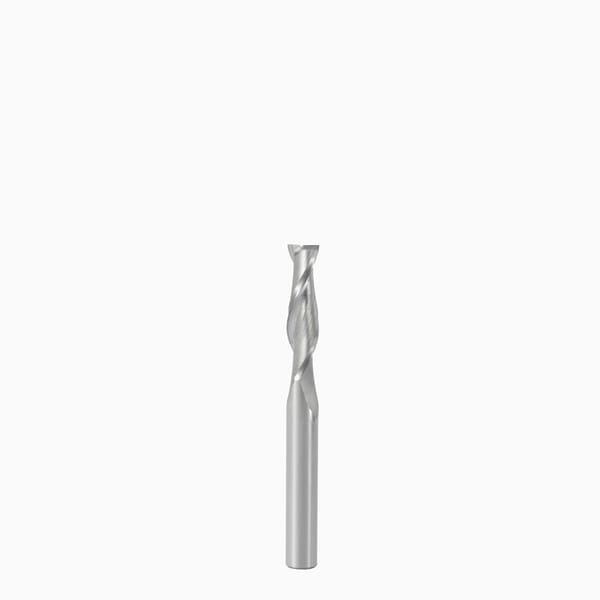

Name: Seco JABRO VHM 02606077 J93 Center Cutting Single End Square End Mill, 0.629 in Dia Cutter, 1.771 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.937 in OAL, Uncoated
Brand: Seco Tools
SKU: Seco_028591
Availability: OutOfStock

Seco Tools

Seco JABRO VHM 02606077 J93 Center Cutting Single End Square End Mill, 0.629 in Dia Cutter, 1.771 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.937 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco JABRO VHM 02606077 J93 Center Cutting Single End Square End Mill, 0.629 in Dia Cutter, 1.771 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.937 in OAL, Uncoated

ManufacturerSeco

Part #288537497

MFG #02606077

Seco JABRO VHM End Mill, Center Cutting Single End Square End, Series: J93, 0.629 in Diameter Cutter, 3.937 in Overall Length, 1.771 in Length of Cut, 2 Flutes, Spiral Flute, 0.629 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 93L160-F, ISO Code: 93L160-F, Solid Carbide, Uncoated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 93L160-F

Country of Origin: NL, US

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 93L160-F

Length of Cut: 1.771 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: J93

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Center Cutting Single End Square End

JABRO-VHM - General machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
1.889 in L minimum clamping
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape

Seco has developed an extensive range of VHM solid carbide milling cutters with diameters of 1 - 32 mm based on their extensive knowledge and experience in this field. The available geometries are specifically designed to fit many applications and the range is so extensive that you are likely to find a standard application where a custom made cutter would normally be required.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: 93L160-F

Country of Origin: NL, US

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 93L160-F

Length of Cut: 1.771 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: J93

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Center Cutting Single End Square End

JABRO-VHM - General machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
1.889 in L minimum clamping
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape

Seco has developed an extensive range of VHM solid carbide milling cutters with diameters of 1 - 32 mm based on their extensive knowledge and experience in this field. The available geometries are specifically designed to fit many applications and the range is so extensive that you are likely to find a standard application where a custom made cutter would normally be required.
