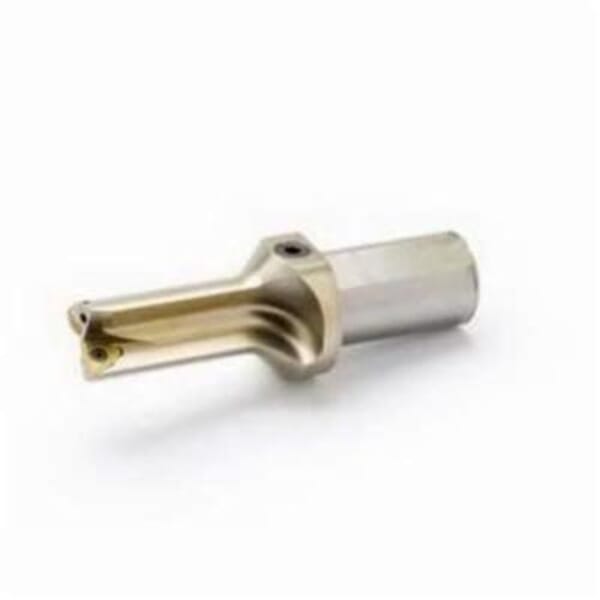

Seco 02602129 Perfomax SD572 Indexable Insert Drill, 0.669 in Drill, 1.775 in Modular Connection, 1 in Dia Shank, 2XD Drill Depth by Dia Ratio, WCMX Insert, 5.755 in OAL, 1.34 in D Max Drill

ManufacturerSeco

Part #288536810

MFG #02602129

Seco Indexable Insert Drill, Series: Perfomax SD572, 0.669 in Drill, 1 in Shank Dia, 3 in Shank Length, ISO 9766 Shank, 1.775 in Modular Connection Size, WCMX Insert, 1.34 in Maximum Drill Depth, 5.755 in Overall Length, 0.669 in Dia, 2XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: WCMX030208-86 Center, WCMX030208.. Peripheral, 1.535 in Flute Length, Yes Through Coolant (Yes/No)

$633.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 0.669 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 0.669 in

Flute Length: 1.535 in

Insert Compatibility: WCMX030208-86 Center, WCMX030208.. Peripheral

Insert Style: WCMX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 1.34 in

Modular Connection Size: 1.775 in

Number of Drill Inserts: 2

Overall Length: 5.755 in

Series: Perfomax SD572

Shank Diameter: 1 in

Shank Length: 3 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Video Link

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 0.669 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 0.669 in

Flute Length: 1.535 in

Insert Compatibility: WCMX030208-86 Center, WCMX030208.. Peripheral

Insert Style: WCMX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 1.34 in

Modular Connection Size: 1.775 in

Number of Drill Inserts: 2

Overall Length: 5.755 in

Series: Perfomax SD572

Shank Diameter: 1 in

Shank Length: 3 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
