Name: Seco 00035405 Milling Insert VPG
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_102848
Availability: OutOfStock

Seco Tools

Seco 00035405 Milling Insert VPG

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00035405 Milling Insert VPG

ManufacturerSeco

Part #288535405

MFG #00035405

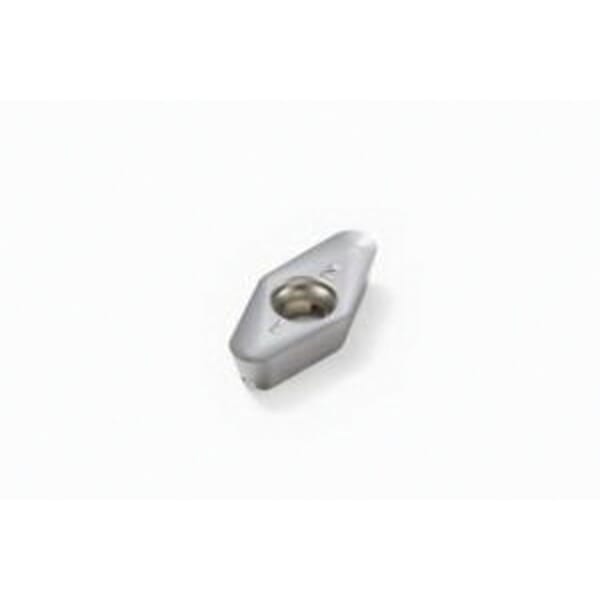

Seco Milling Insert, VPGX Insert, 220624 Insert, Rhombic, 12.7 mm Inscribed Circle, 6.35 mm Thickness, E10 Chipbreaker, 2.5 mm Corner Radius, Manufacturers Grade: H25, ANSI Code: VPGX220624ER-E10 H25, Right Hand, Carbide, Uncoated, Material Grade: C5, Cast Iron, Plastics and Non-Ferrous Metals Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: VPGX220624ER-E10 H25
Chipbreaker: E10
Corner Radius: 2.5 mm
Country of Origin: IN, IT
Finish: Uncoated
Hand of Insert: Right
Inscribed Circle: 12.7 mm
Insert Size: 220624
Insert Style: VPGX
Manufacturer Name: Seco Tools
Manufacturers Grade: H25
Material: Carbide
Material Application: Cast Iron, Plastics and Non-Ferrous Metals
Material Grade: C5
Shape: Rhombic
Thickness: 6.35 mm
: The Aluminum milling insert VPGX220624ER-E10 H25 features two cutting edges and a single-sided design. With a clearance angle major of 11 degrees and an insert rake angle of 25 degrees, it is designed for easy applications with an average chip thickness of 0.10 mm. The insert has a corner radius of 2.4 mm and a carbide uncoated grade type. The cutting geometry type is classified as E10, and the wiper edge length is 0 mm. This insert is intended primarily for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: VPGX220624ER-E10 H25
Chipbreaker: E10
Corner Radius: 2.5 mm
Country of Origin: IN, IT
Finish: Uncoated
Hand of Insert: Right
Inscribed Circle: 12.7 mm
Insert Size: 220624
Insert Style: VPGX
Manufacturer Name: Seco Tools
Manufacturers Grade: H25
Material: Carbide
Material Application: Cast Iron, Plastics and Non-Ferrous Metals
Material Grade: C5
Shape: Rhombic
Thickness: 6.35 mm
: The Aluminum milling insert VPGX220624ER-E10 H25 features two cutting edges and a single-sided design. With a clearance angle major of 11 degrees and an insert rake angle of 25 degrees, it is designed for easy applications with an average chip thickness of 0.10 mm. The insert has a corner radius of 2.4 mm and a carbide uncoated grade type. The cutting geometry type is classified as E10, and the wiper edge length is 0 mm. This insert is intended primarily for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
