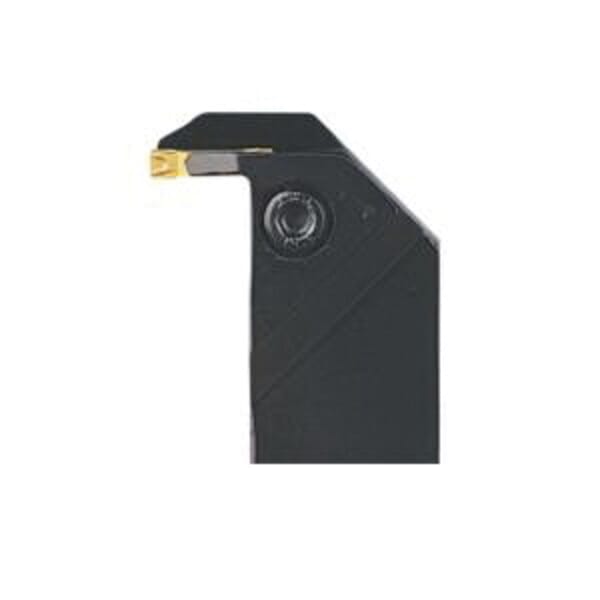

Seco 00035360 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CGIR2525M06R230140, CGIR Tool Holder, LC..1606.. Insert, Right Hand Cutting, 25 mm W Square Shank, 90 deg Lead Angle, 150 mm OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00035360 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CGIR2525M06R230140, CGIR Tool Holder, LC..1606.. Insert, Right Hand Cutting, 25 mm W Square Shank, 90 deg Lead Angle, 150 mm OAL

ManufacturerSeco

Part #288535360

MFG #00035360

Seco Indexable Turning Tool Holder, Multi-Directional, CGIR Tool Holder, 150 mm Overall Length, Square Shank, 25 mm W Shank, Insert Compatibility: LC..1606.., 6 Insert Seat, Right Hand Cutting, 15.88 mm Inscribed Circle, 44.4 mm Back of Bar to Cutting Edge, 90 deg Lead Angle, 34 mm Head Length, ANSI Code: CGIR2525M06R230140, Steel

$387.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CGIR2525M06R230140
Back of Bar to Cutting Edge: 44.4 mm
Country of Origin: IN
Cutting Direction: Right Hand
Head Length: 34 mm
Inscribed Circle: 15.88 mm
Insert Compatibility: LC..1606..
Insert Seat Size: 6
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Overall Length: 150 mm
Shank Size: 25 mm W
Shank Type: Square
Tool Holder Style: CGIR
Type: Multi-Directional
: The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling, a high pressure cooling system directing coolant supply to the cutting edge.

: Manufacturer Name: Seco Tools
ANSI Code: CGIR2525M06R230140
Back of Bar to Cutting Edge: 44.4 mm
Country of Origin: IN
Cutting Direction: Right Hand
Head Length: 34 mm
Inscribed Circle: 15.88 mm
Insert Compatibility: LC..1606..
Insert Seat Size: 6
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Overall Length: 150 mm
Shank Size: 25 mm W
Shank Type: Square
Tool Holder Style: CGIR
Type: Multi-Directional
: The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling, a high pressure cooling system directing coolant supply to the cutting edge.
