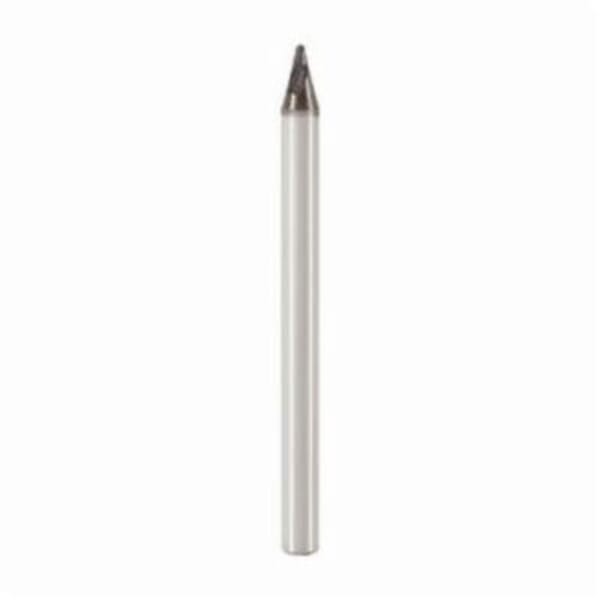

Seco JABRO Mini 02569096 JM116 Ball End Center Cutting Single End Mill, 0.059 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-64-T/PVD Coated

ManufacturerSeco

Part #288532261

MFG #02569096

Seco JABRO Mini End Mill, Ball End Center Cutting Single End, Series: JM116, 0.059 in Diameter Cutter, 1.968 in Overall Length, 0.059 in Length of Cut, 2 Flutes, Spiral Flute, 0.236 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 116ML020TN-MEGA-64-T, ISO Code: 116ML020TN-MEGA-64-T, Solid Carbide, MEGA-64-T/PVD Coated

$126.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 116ML020TN-MEGA-64-T

Country of Origin: NL

Cutter Diameter: 0.059 in

Cutting Direction: Right Hand

Finish: MEGA-64-T/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 116ML020TN-MEGA-64-T

Length of Cut: 0.059 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.968 in

Series: JM116

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-64-T is primarily used with miniature mills, it is commonly used in high speed applications on hardened steels
90 deg cutting edge
0.039 in corner radius
1.417 in L minimum clamping
30 deg axial rake
4 deg radial rake
0.074 in Dia neck
0.236 - 0.543 in L neck
J - Tool shape
2 teeth across centre cut

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.
