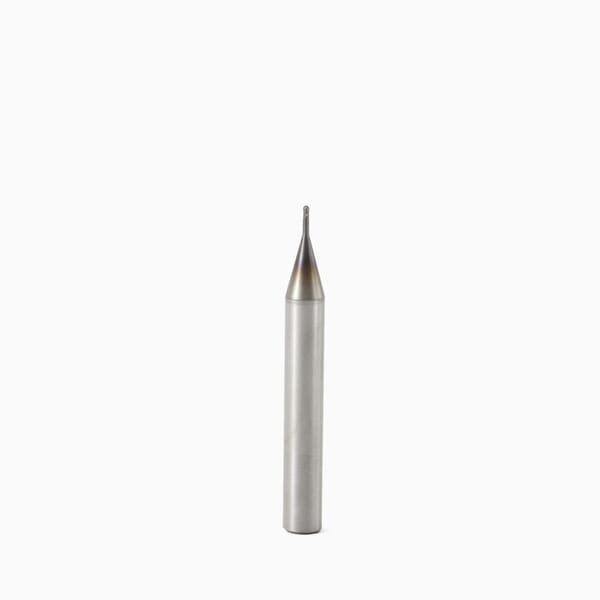

Name: Seco JABRO Mini 02569088 JM116 Ball End Center Cutting Single End Mill, 0.059 in Dia Cutter, 0.044 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-64-T
Brand: Seco Tools
SKU: Seco_026319
Availability: OutOfStock

Seco Tools

Seco JABRO Mini 02569088 JM116 Ball End Center Cutting Single End Mill, 0.059 in Dia Cutter, 0.044 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-64-T

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco JABRO Mini 02569088 JM116 Ball End Center Cutting Single End Mill, 0.059 in Dia Cutter, 0.044 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-64-T

ManufacturerSeco

Part #288532254

MFG #02569088

Seco JABRO Mini End Mill, Ball End Center Cutting Single End, Series: JM116, 0.059 in Cutter Dia, 1.968 in Overall Length, 0.044 in Length of Cut, 2 Flutes, Spiral Flute, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 116ML015TN-MEGA-64-T, ISO Code: 116ML015TN-MEGA-64-T, Solid Carbide, MEGA-64-T

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 116ML015TN-MEGA-64-T

Country of Origin: NL

Cutter Diameter: 0.059 in

Cutting Direction: Right Hand

Finish: MEGA-64-T, MEGA-64-T/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 116ML015TN-MEGA-64-T

Length of Cut: 0.044 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.968 in

Series: JM116

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-64-T is primarily used with miniature mills, it is commonly used in high speed applications on hardened steels
90 deg cutting edge
0.029 in corner radius
1.417 in L minimum clamping
30 deg axial rake
4 deg radial rake
0.055 in Dia neck
0.196 - 0.543 in L neck
J - Tool shape
2 teeth across centre cut

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: 116ML015TN-MEGA-64-T

Country of Origin: NL

Cutter Diameter: 0.059 in

Cutting Direction: Right Hand

Finish: MEGA-64-T, MEGA-64-T/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 116ML015TN-MEGA-64-T

Length of Cut: 0.044 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.968 in

Series: JM116

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-64-T is primarily used with miniature mills, it is commonly used in high speed applications on hardened steels
90 deg cutting edge
0.029 in corner radius
1.417 in L minimum clamping
30 deg axial rake
4 deg radial rake
0.055 in Dia neck
0.196 - 0.543 in L neck
J - Tool shape
2 teeth across centre cut

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Catalog
