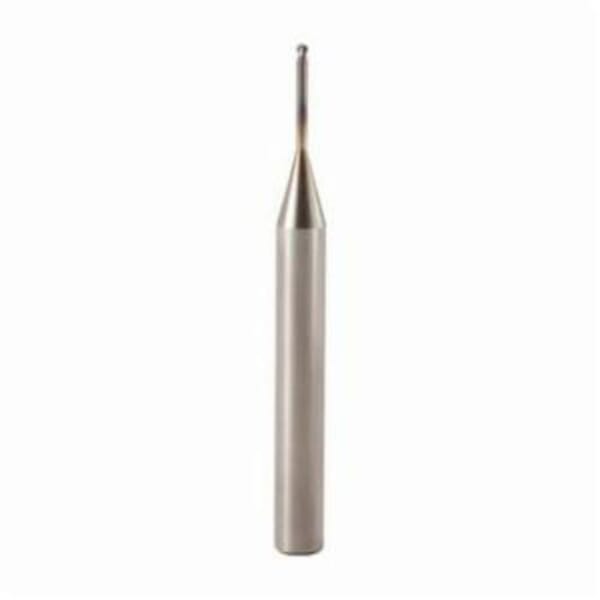

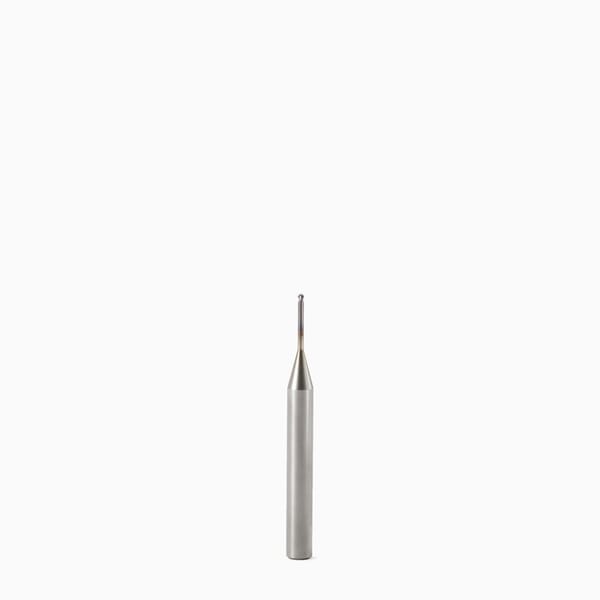

Name: Seco JABRO Mini 02568779 JM416 Ball End Center Cutting Long Length Single End Mill, 0.078 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-T/PVD Coated
Brand: Seco Tools
SKU: Seco_026244
Availability: OutOfStock

Seco Tools

Seco JABRO Mini 02568779 JM416 Ball End Center Cutting Long Length Single End Mill, 0.078 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-T/PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco JABRO Mini 02568779 JM416 Ball End Center Cutting Long Length Single End Mill, 0.078 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-T/PVD Coated

ManufacturerSeco

Part #288532072

MFG #02568779

Seco JABRO End Mill, Ball End Center Cutting Long Length Single End, 0.078 in Cutter Dia, 1.968 in Overall Length, 0.059 in Length of Cut, 2 Flutes, Spiral Flute, 0.236 in Shank Dia, Right Hand Cutting, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: 416L020-MEGA-T, ISO Code: 416L020-MEGA-T, Solid Carbide, MEGA-T/PVD Coated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 416L020-MEGA-T

Country of Origin: NL

Cutter Diameter: 0.078 in

Cutting Direction: Right Hand

Finish: MEGA-T/PVD Coated

Flute Type: Spiral

Helix Angle: 50 deg

ISO Code: 416L020-MEGA-T

Length of Cut: 0.059 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.968 in

Series: JM416

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Long Length Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic
90 deg cutting edge
0.039 in corner radius
1.417 in L minimum clamping
50 deg axial rake
20 deg radial rake
0.074 in Dia neck
0.393 - 0.712 in L neck
G - Step Neck tool shape

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: 416L020-MEGA-T

Country of Origin: NL

Cutter Diameter: 0.078 in

Cutting Direction: Right Hand

Finish: MEGA-T/PVD Coated

Flute Type: Spiral

Helix Angle: 50 deg

ISO Code: 416L020-MEGA-T

Length of Cut: 0.059 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.968 in

Series: JM416

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Long Length Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic
90 deg cutting edge
0.039 in corner radius
1.417 in L minimum clamping
50 deg axial rake
20 deg radial rake
0.074 in Dia neck
0.393 - 0.712 in L neck
G - Step Neck tool shape

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Catalog
