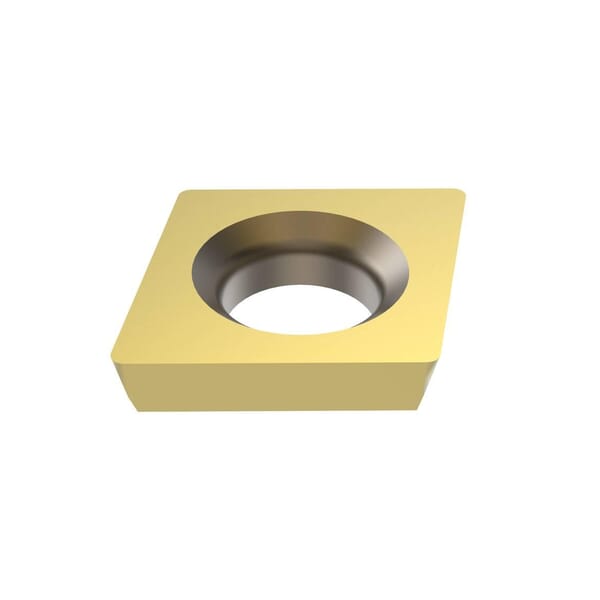

Name: Seco 02868495 Turning Insert, ANSI Code: CDCB1.21.20.5 TS2500, CDCB Insert, Material Grade: S, 04T002 Insert, Diamond Shape, 04 Seat, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: TS2500
Brand: Seco Tools
SKU: Seco_025348
Availability: OutOfStock

Seco Tools

Seco 02868495 Turning Insert, ANSI Code: CDCB1.21.20.5 TS2500, CDCB Insert, Material Grade: S, 04T002 Insert, Diamond Shape, 04 Seat, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: TS2500

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02868495 Turning Insert, ANSI Code: CDCB1.21.20.5 TS2500, CDCB Insert, Material Grade: S, 04T002 Insert, Diamond Shape, 04 Seat, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: TS2500

ManufacturerSeco

Part #288530263

MFG #02868495

Seco Turning Insert, CDCB Insert, 04T002 Insert, Diamond, 1 mm Maximum Depth of Cut, 4 mm Inscribed Circle, 0.97 mm Thickness, 04 Seat, 0.2 mm Corner Radius, 2 mm Hole Dia, Manufacturers Grade: TS2500, ANSI Code: CDCB1.21.20.5 TS2500, ISO Code: CDCB04T002 TS2500, 80 deg Included Angle, 15 deg Relief Angle, Carbide, TiAlN/TiN, Material Grade: S, For Use On: Super Alloys and Titanium

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CDCB1.21.20.5 TS2500
Corner Radius: 0.2 mm
Country of Origin: SE
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Super Alloys and Titanium
Hole Diameter: 2 mm
Included Angle: 80 deg
Inscribed Circle: 4 mm
Insert Size: 04T002
Insert Style: CDCB
ISO Code: CDCB04T002 TS2500
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2500
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 1 mm
Relief Angle: 15 deg
Seat Size: 04
Shape: Diamond
Thickness: 0.97 mm
: The Turning insert CDCB04T002 TS2500 features a positive type geometry with a clearance angle major of 15 degrees. It is made from a carbide PVD grade TS2500. The insert has two cutting edges and a corner radius of 0.2 mm. With a cutting edge effective length of 3.83 mm, the insert is designed with a neutral hand orientation. The main application area includes superalloys and titanium, with partial applicability to stainless steel and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: CDCB1.21.20.5 TS2500
Corner Radius: 0.2 mm
Country of Origin: SE
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Super Alloys and Titanium
Hole Diameter: 2 mm
Included Angle: 80 deg
Inscribed Circle: 4 mm
Insert Size: 04T002
Insert Style: CDCB
ISO Code: CDCB04T002 TS2500
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2500
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 1 mm
Relief Angle: 15 deg
Seat Size: 04
Shape: Diamond
Thickness: 0.97 mm
: The Turning insert CDCB04T002 TS2500 features a positive type geometry with a clearance angle major of 15 degrees. It is made from a carbide PVD grade TS2500. The insert has two cutting edges and a corner radius of 0.2 mm. With a cutting edge effective length of 3.83 mm, the insert is designed with a neutral hand orientation. The main application area includes superalloys and titanium, with partial applicability to stainless steel and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
