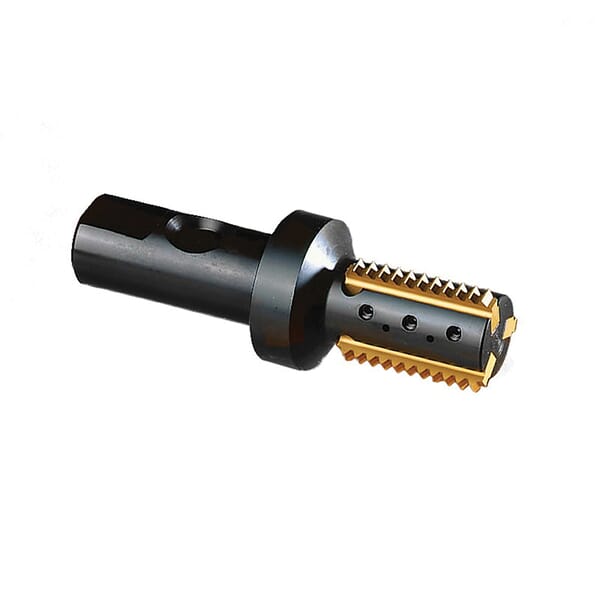

Seco 02546938 Weldon Shank Indexable Thread Mill With Through Coolant, 22 mm Dia Cutting, 40 mm Max Hole Depth, 4003 Insert, R396.19 Tool Holder

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02546938 Weldon Shank Indexable Thread Mill With Through Coolant, 22 mm Dia Cutting, 40 mm Max Hole Depth, 4003 Insert, R396.19 Tool Holder

ManufacturerSeco

Part #288529537

MFG #02546938

Seco Indexable Thread Mill, Weldon Shank, 22 mm Cutting Dia, 40 mm Maximum Hole Depth, 4003 Insert, R396.19 Tool Holder, 25.4 mm Shank Dia, 55.5 mm Shank Length, 115.5 mm Overall Length, 3 Threading Inserts, Screw Insert Holding Method

$736.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Country of Origin: GB, IN
Cutting Diameter: 22 mm
Insert Holding Method: Screw
Insert Size: 4003
Manufacturer Name: Seco Tools
Maximum Hole Depth: 40 mm
Number of Threading Inserts: 3
Overall Length: 115.5 mm
Shank Diameter: 25.4 mm
Shank Length: 55.5 mm
Tool Holder Style: R396.19
Type: Weldon Shank
: Seco 396.18/19/20 thread mills are versatile, cost effective process tools for anyone facing a variety of threads, parts and workpiece materials on the same machine. Multi-tooth indexable insert cutters use a double sided multi-tooth insert usable above 14 mm for both internal and external threads. The mills have up to 9 inserts for faster production time. A 40 mm insert is available with different thread profiles and pitches. Precision ground for perfect thread forms, it is available in our tough and durable F30M grade.

: Manufacturer Name: Seco Tools
Country of Origin: GB, IN
Cutting Diameter: 22 mm
Insert Holding Method: Screw
Insert Size: 4003
Manufacturer Name: Seco Tools
Maximum Hole Depth: 40 mm
Number of Threading Inserts: 3
Overall Length: 115.5 mm
Shank Diameter: 25.4 mm
Shank Length: 55.5 mm
Tool Holder Style: R396.19
Type: Weldon Shank
: Seco 396.18/19/20 thread mills are versatile, cost effective process tools for anyone facing a variety of threads, parts and workpiece materials on the same machine. Multi-tooth indexable insert cutters use a double sided multi-tooth insert usable above 14 mm for both internal and external threads. The mills have up to 9 inserts for faster production time. A 40 mm insert is available with different thread profiles and pitches. Precision ground for perfect thread forms, it is available in our tough and durable F30M grade.
