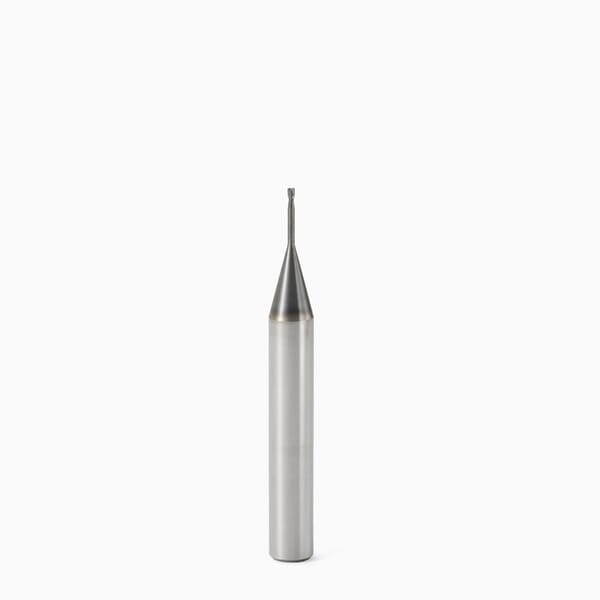

Seco JABRO Mini 00023303 Mini JM920 Center Cutting Single End Universal End Mill, 0.6 mm Dia Cutter, 0.05 mm Corner Radius, 0.9 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 50 mm OAL, MEGA-T/PVD Coated

ManufacturerSeco

Part #288523303

MFG #00023303

Seco JABRO Mini End Mill, Center Cutting Single End Universal, Series: Mini JM920, 0.6 mm Diameter Cutter, 0.05 mm Corner Radius, 50 mm Overall Length, 0.9 mm Length of Cut, 2 Flutes, Right Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, ANSI Code: 920ML006-MEGA-T, ISO Code: 920ML006-MEGA-T, Solid Carbide, MEGA-T/PVD Coated

$140.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 920ML006-MEGA-T
Corner Radius: 0.05 mm
Country of Origin: NL
Cutter Diameter: 0.6 mm
Cutting Direction: Right Hand
Finish: MEGA-T/PVD Coated
Flute Type: Right Spiral
Helix Angle: 20 deg
ISO Code: 920ML006-MEGA-T
Length of Cut: 0.9 mm
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 50 mm
Series: JABRO Mini JM920, Mini JM920
Shank Diameter: 6 mm
Shank Type: Cylindrical
Type: Center Cutting Single End Universal
: Micro-technology and miniaturization are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 to 2 mm and in longer overhang lengths based on the typical dimensions up to 16XD. They are the result of continuous research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.
