Name: Seco 02205617 Turning Insert, ANSI Code: RCMT0803M0-F2 CP200, RCMT Insert, Material Grade: M, S, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: CP200
Brand: Seco Tools
SKU: Seco_019400
Availability: OutOfStock

Seco Tools

Seco 02205617 Turning Insert, ANSI Code: RCMT0803M0-F2 CP200, RCMT Insert, Material Grade: M, S, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: CP200

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02205617 Turning Insert, ANSI Code: RCMT0803M0-F2 CP200, RCMT Insert, Material Grade: M, S, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: CP200

ManufacturerSeco

Part #288516249

MFG #02205617

Seco Turning Insert, RCMT Insert, 0803M0 Insert, Round, 3.75 mm Maximum Depth of Cut, 8 mm Inscribed Circle, 3.18 mm Thickness, 08 Seat, Positive Rake, F2 Chipbreaker, 3.5 mm Hole Dia, Manufacturers Grade: CP200, ANSI Code: RCMT0803M0-F2 CP200, ISO Code: RCMT0803M0-F2 CP200, 7 deg Relief Angle, Neutral Cutting, Carbide, TiAlN/TiN, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: RCMT0803M0-F2 CP200
Chipbreaker: F2
Country of Origin: IN
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 3.5 mm
Inscribed Circle: 8 mm
Insert Size: 0803M0
Insert Style: RCMT
ISO Code: RCMT0803M0-F2 CP200
Manufacturer Name: Seco Tools
Manufacturers Grade: CP200
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 08
Shape: Round
Thickness: 3.18 mm

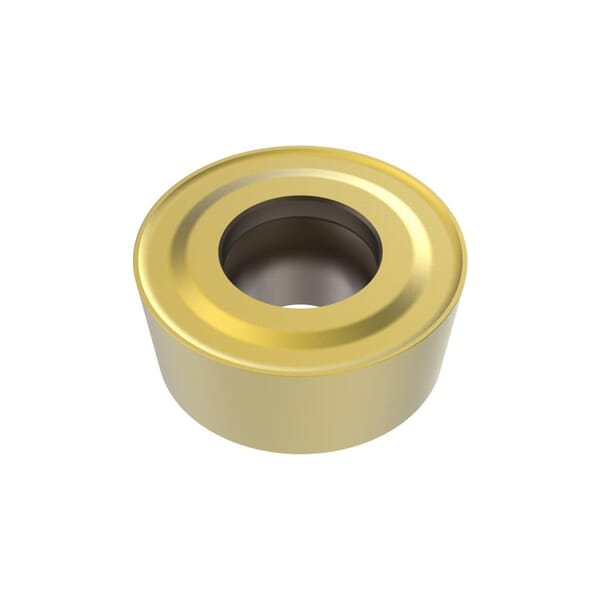

: The Turning insert RCMT0803M0-F2 CP200 features a positive type with a clearance angle major of 7 degrees. With an insert diameter of 8 mm, the insert has four cutting edges and a neutral hand orientation. It is made from a carbide PVD grade CP200. The insert is designed primarily for machining superalloys and titanium as well as hard materials, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: RCMT0803M0-F2 CP200
Chipbreaker: F2
Country of Origin: IN
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 3.5 mm
Inscribed Circle: 8 mm
Insert Size: 0803M0
Insert Style: RCMT
ISO Code: RCMT0803M0-F2 CP200
Manufacturer Name: Seco Tools
Manufacturers Grade: CP200
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 08
Shape: Round
Thickness: 3.18 mm
: The Turning insert RCMT0803M0-F2 CP200 features a positive type with a clearance angle major of 7 degrees. With an insert diameter of 8 mm, the insert has four cutting edges and a neutral hand orientation. It is made from a carbide PVD grade CP200. The insert is designed primarily for machining superalloys and titanium as well as hard materials, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
