Name: Seco 02959957 Turning Insert, ANSI Code: DNMU332-M3 TP2501, DNMU Insert, Material Grade: P, 110408 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501
Brand: Seco Tools
SKU: Seco_018890
Availability: OutOfStock

Seco Tools

Seco 02959957 Turning Insert, ANSI Code: DNMU332-M3 TP2501, DNMU Insert, Material Grade: P, 110408 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02959957 Turning Insert, ANSI Code: DNMU332-M3 TP2501, DNMU Insert, Material Grade: P, 110408 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

ManufacturerSeco

Part #288515504

MFG #02959957

Seco Turning Insert, DNMU Insert, 110408 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Negative/Positive Rake, M3 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturers Grade: TP2501, ANSI Code: DNMU332-M3 TP2501, ISO Code: DNMU110408-M3 TP2501, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, TiCN/Al2O3, Material Grade: P, For Use On: Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: DNMU332-M3 TP2501
Chipbreaker: M3
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated, TiCN/Al2O3
For Use On: Steel
Hole Diameter: 3.81 mm
Included Angle: 55 deg
Inscribed Circle: 9.53 mm
Insert Size: 110408
Insert Style: DNMU
ISO Code: DNMU110408-M3 TP2501
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.75 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 11
Shape: Diamond
Thickness: 4.76 mm

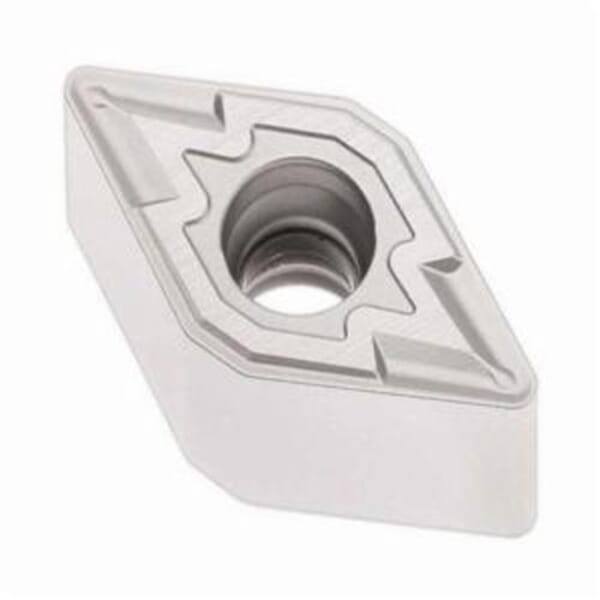

: The Turning insert DNMU110408-M3 TP2501 features a negative type design with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP2501. The insert has four cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 10.8 mm, the insert is neutral handed. Its main application area is steel, with partial applicability to stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: DNMU332-M3 TP2501
Chipbreaker: M3
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated, TiCN/Al2O3
For Use On: Steel
Hole Diameter: 3.81 mm
Included Angle: 55 deg
Inscribed Circle: 9.53 mm
Insert Size: 110408
Insert Style: DNMU
ISO Code: DNMU110408-M3 TP2501
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.75 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 11
Shape: Diamond
Thickness: 4.76 mm
: The Turning insert DNMU110408-M3 TP2501 features a negative type design with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP2501. The insert has four cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 10.8 mm, the insert is neutral handed. Its main application area is steel, with partial applicability to stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
