Name: Seco 03041932 Milling Insert, ANSI Code: R335.14-277250.14Z3-M03 F32M, R335.14 Insert, 277250.14 Insert, Carbide, Manufacturers Grade: F32M
Brand: Seco Tools
SKU: SECO_TOOLS_Q1_18_002827
Availability: OutOfStock

Seco Tools

Seco 03041932 Milling Insert, ANSI Code: R335.14-277250.14Z3-M03 F32M, R335.14 Insert, 277250.14 Insert, Carbide, Manufacturers Grade: F32M

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 03041932 Milling Insert, ANSI Code: R335.14-277250.14Z3-M03 F32M, R335.14 Insert, 277250.14 Insert, Carbide, Manufacturers Grade: F32M

ManufacturerSeco

Part #288515225

MFG #03041932

Seco Milling Insert, R335.14 Insert, 277250.14 Insert, 6.5 mm Thickness, 27.7 mm Width, 27.7 mm Length, M03 Chipbreaker, 0.2 mm Corner Radius, Neutral Rake, Manufacturers Grade: F32M, ANSI Code: R335.14-277250.14Z3-M03 F32M, Right Hand, Carbide, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: R335.14-277250.14Z3-M03 F32M
Chipbreaker: M03
Corner Radius: 0.2 mm
Country of Origin: DE, FR
Finish: PVD Coated
Hand of Insert: Right
Insert Size: 277250.14
Insert Style: R335.14
Length: 27.7 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: F32M
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Rake: Neutral
Thickness: 6.5 mm
Width: 27.7 mm

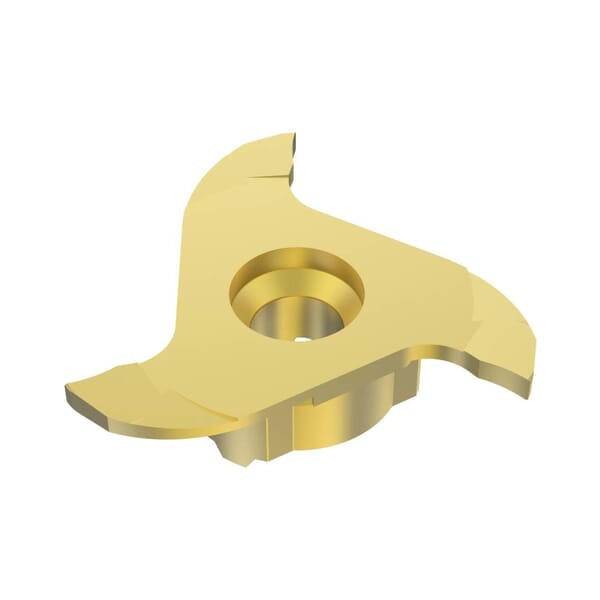

: The Replaceable head disc milling cutter-General grooving R335.14-277250.14Z3-M03 F32M features a cutting diameter of 27.7 mm and a cutting width of 2.5 mm. It has three peripheral cutting edges and a corner radius of 0.2 mm. The cutter uses a carbide PVD grade and has a contact surface diameter on the machine side of 14 mm. This milling cutter is suitable for steel, stainless steel, cast irons, non-ferrous metals, superalloys and titanium, and hard materials. It is compatible with milling cutter applications including exchangeable head mills, disc mills, mini disc 335.14, replaceable head disc cutters with diameters from 6.7 to 50 mm, and general grooving tasks. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: R335.14-277250.14Z3-M03 F32M
Chipbreaker: M03
Corner Radius: 0.2 mm
Country of Origin: DE, FR
Finish: PVD Coated
Hand of Insert: Right
Insert Size: 277250.14
Insert Style: R335.14
Length: 27.7 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: F32M
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Rake: Neutral
Thickness: 6.5 mm
Width: 27.7 mm
: The Replaceable head disc milling cutter-General grooving R335.14-277250.14Z3-M03 F32M features a cutting diameter of 27.7 mm and a cutting width of 2.5 mm. It has three peripheral cutting edges and a corner radius of 0.2 mm. The cutter uses a carbide PVD grade and has a contact surface diameter on the machine side of 14 mm. This milling cutter is suitable for steel, stainless steel, cast irons, non-ferrous metals, superalloys and titanium, and hard materials. It is compatible with milling cutter applications including exchangeable head mills, disc mills, mini disc 335.14, replaceable head disc cutters with diameters from 6.7 to 50 mm, and general grooving tasks. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Video Link
